Purpose:
It lists FWA-6170 MGMT board's SW7 (I210 NCSI) switch setting for customer reference,
Target Audience:
For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges :
- MB Hardware troubleshooting experience
Content:

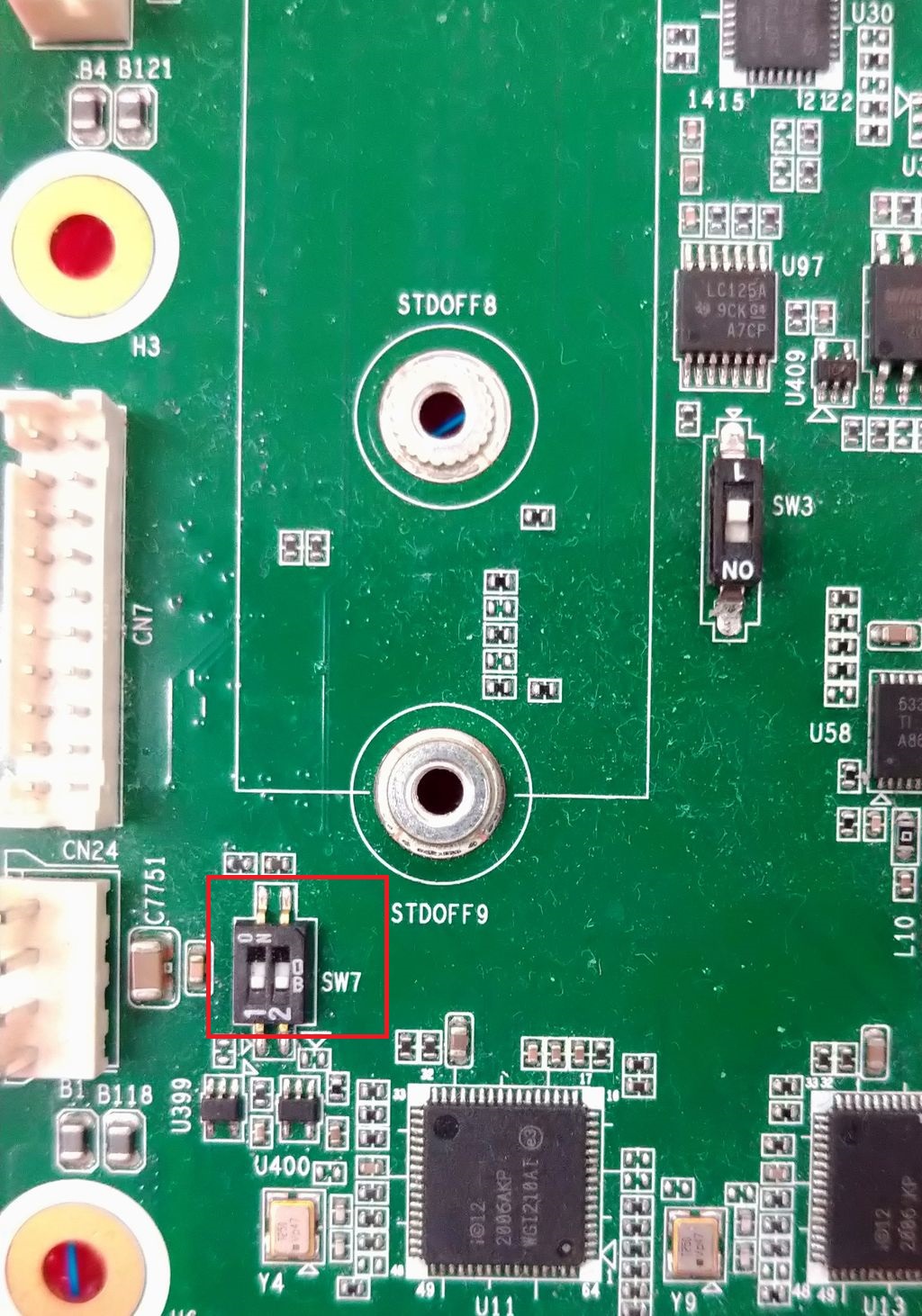

1. If a user needs to configure the FWA-6170's MGMT port as a dedicated BMC LAN port, please refer to the following table to set SW7-1 (MGMT1) or SW7-2 (MGMT2).
Port ID | PCIE BUS ID | Switch ID | ON | OFF |
MGNT1 | 01:00.0 | SW7-1 | BMC dedicated | NCSI(default setting) |
MGNT2 | 02:00.0 | SW7-2 | BMC dedicated | NCSI(default setting) |
2. If user sets SW7-1 (MGMT1) or SW7-2 (MGMT2) as ON(dedicated mode), The user is unable to locate the dedicated mode on the OS, because OS only detects non-dedicated mode (NCSI) device.

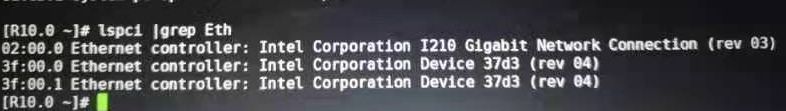

Please refer following photo, OS can't detects MGMT 1 LAN device (BUS ID:01:00.0) and MGMT 1 LAN device (BUS ID:01:00.0) set as dedicated mode
