How to enable Identification LED on FWA-6170

Pre-requirement & reference

How to approach BMC on Advantech CIoT platforms

How to set BMC IP address

How to setup BMC IP address via BIOS

* Advantech’s IANA Enterprise Number used for OEM commands is 002839h

* IANA = Internet Assigned Number Authority

Purpose

The FWA-6170 system chassis supports one blue LED (FRU LED ID 0x00) to allow users to identify the chassis. The LED is visible on the front side of the chassis and can be controlled by the standard IPMI Chassis Identify command.

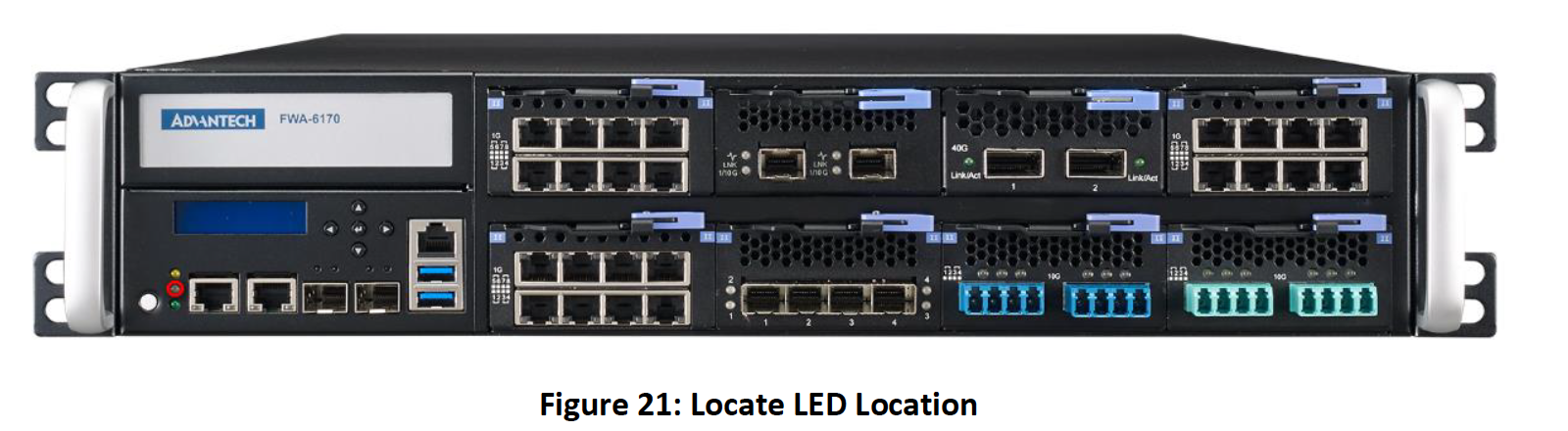

LED Location

How To

Following command is executable via KCS in local or IOL from remote clients, following example is KCS way.

Turn ON:
#ipmitool picmg led set 0 0x00 255 1 0x0f

Turn OFF:
#ipmitool picmg led set 0 0x00 0 1 0x0f
