How to set 2 SATA M.2 modules a Intel RSTe RAID 0/1

Purpose:

It lists SATA M.2 RAID setting  for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges  :

• Linux troubleshooting experience

Content:

Requirement

Please refer following steps if user needs to set 2 SATA M.2 modules as a Intel RSTe RAID,

Step:

1. Please install 2 SATA M.2 modules  in FWA-6170

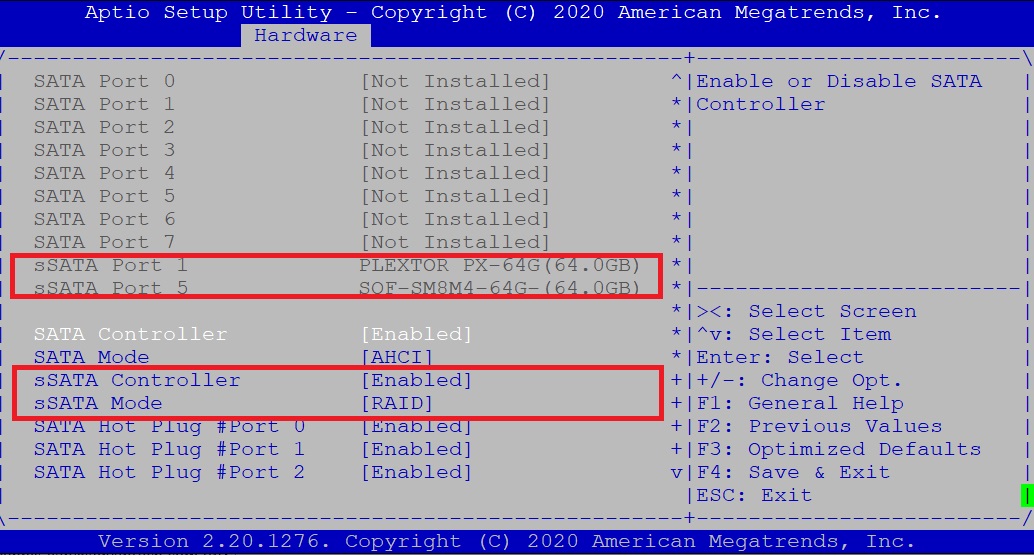

2. Please check sSATA port1 & sSATA port5 detecting SATA M.2 module or not,

3. Please set sSATA controller as "Enabled" and Set sSATA Mode as "RAID"

4. Please save BIOS setting and reboot system, and please press "Ctrl-I" to login Intel RSTe RAID

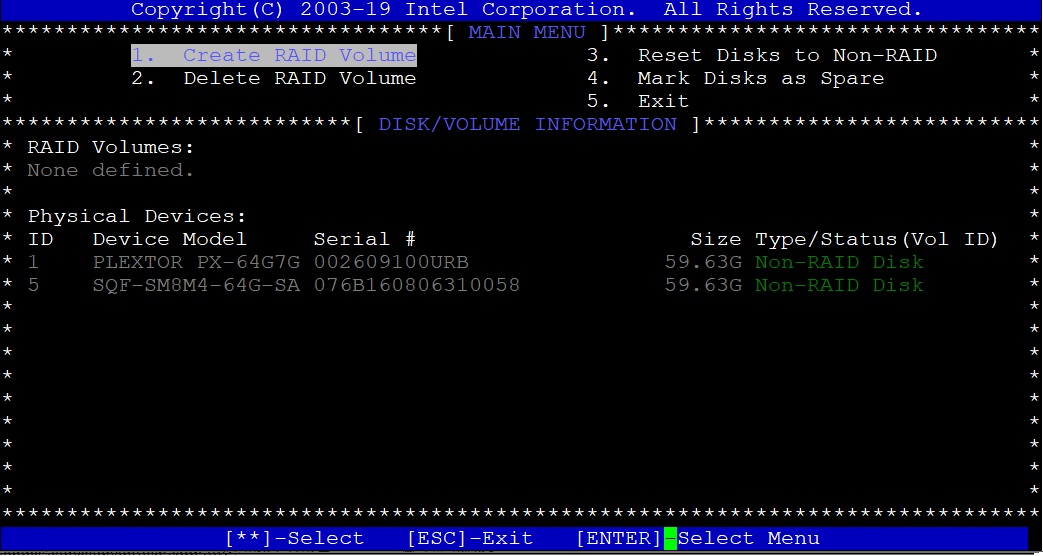

5. Please refer Intel RSTe RAID manual to create SATA M.2 modules as a RAID 0/1
