Purpose:

It lists FWA-6170 PCIE riser card installation for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges :

HW installation troubleshooting experience

Content:

Attention please:

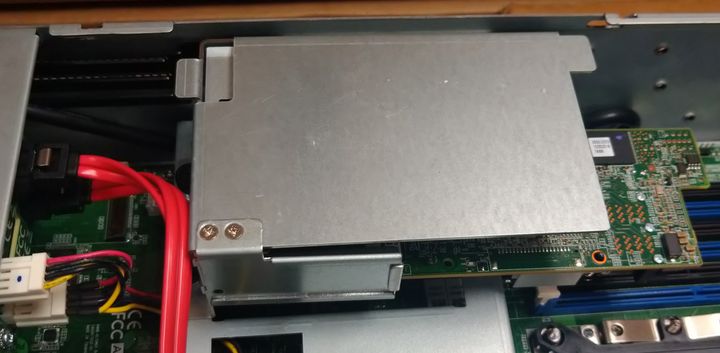

Please careful to unplug & plug PCIe cage from FWA-6170 when user install PCIe card in FWA-6170.

PCIe card Installation notes.

Please refer FWA-6170 user manual Chapter 1.5.4 PCIe (page 18), or refer following steps to install Half and Low Profile size (HL) PCIe card in FWA-6170 series.

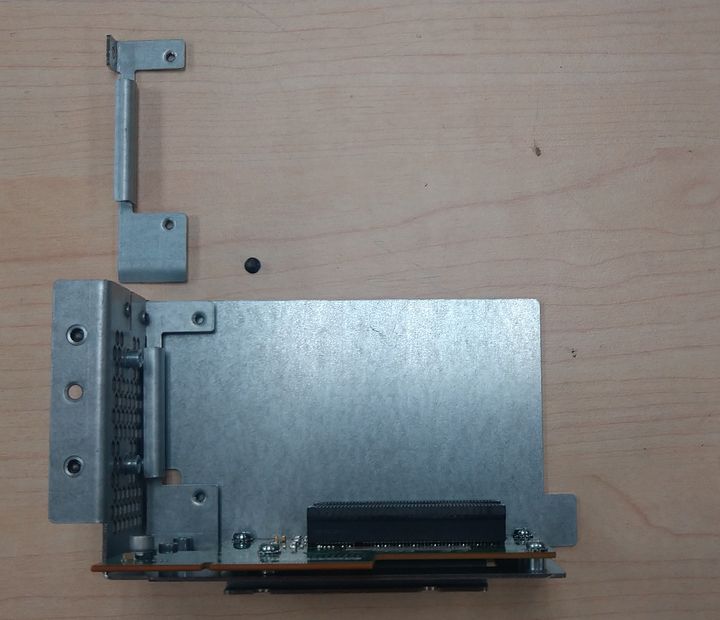

1. Please unplug PCIe cage from the FWA-6170, and remove a bracket from PCIe cage

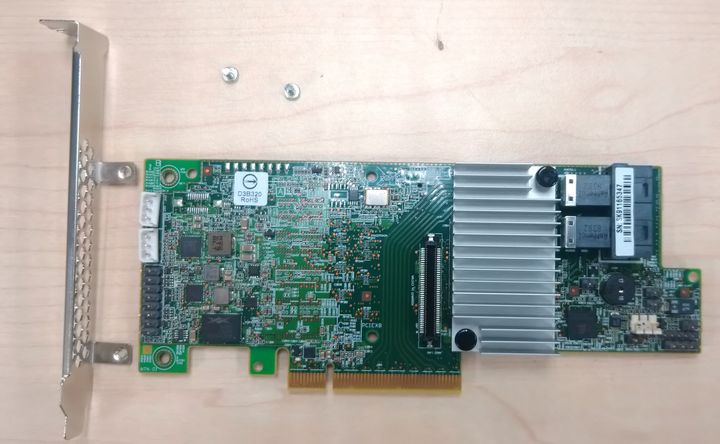

2. Please remove the bracket from the Haft Low Profile (HL) size PCIe card

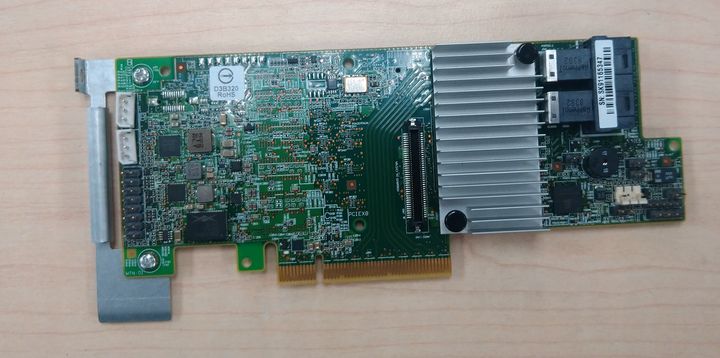

3. Please install FWA-6170 PCIe cage bracket in PCIe card

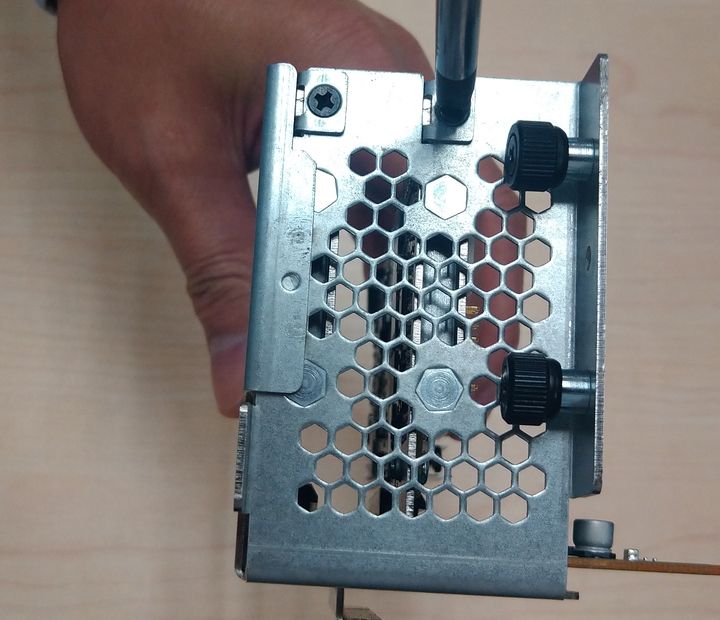

PS1 : The screw type of FWA-6170 PCIe cage is using "ISO metric screw", if customer's PCIe card screw type is "Inch screw" , please contact Advantech to order M3X5L screw. (P/N: 1935030500, Screw M3x5L R/S D=5.5 H=2 (2+) ST Ni)

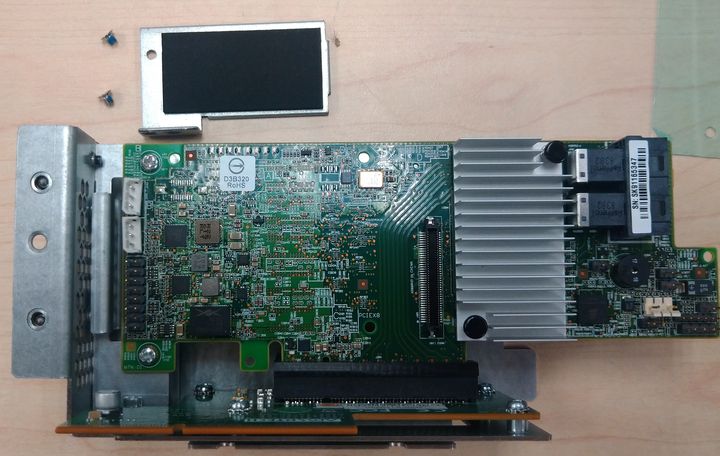

PS2: Some PCIe riser card's screw-hole is not compatibility with FWA-6170 PCIe Cage bracket, please contact Advantech to ask the bracket's screw P/N .

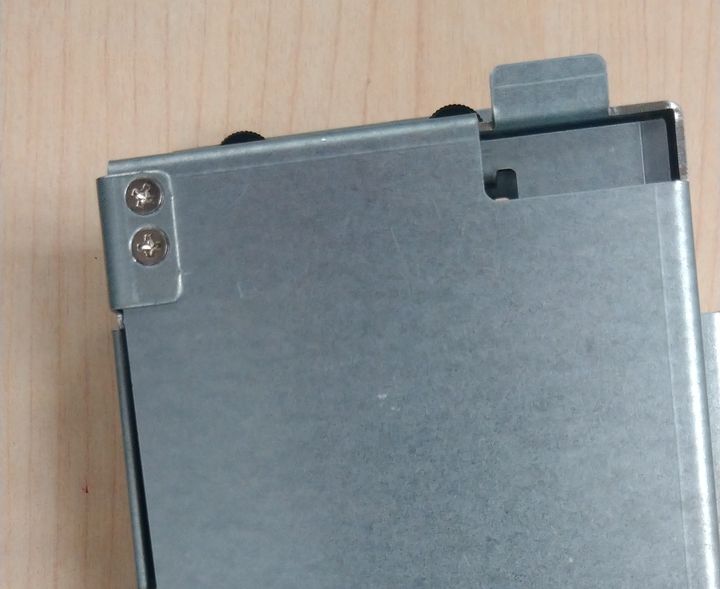

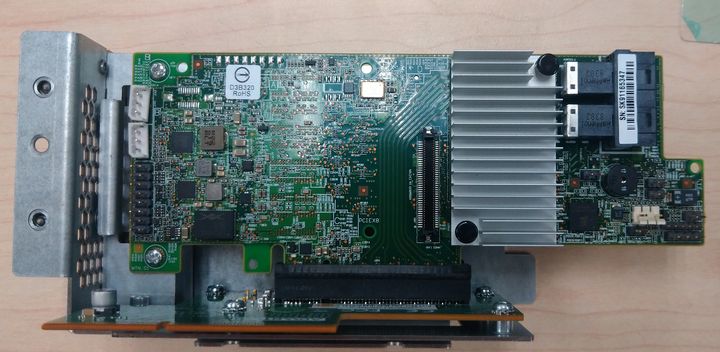

4. Please install "Changed bracket PCIe card" in FWA-6170 PCIe Cage.
