Extension LTE antenna Part Number for FWA-1012

Purpose:

It lists FWA-1012 Extent LTE antenna  PN for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges  :

• Hardware troubleshooting experience

Content:

When user needs to install the extension LTE antenna with FWA-1012, please refer following table to choose suitable extension LTE antenna.

P/N	1750009217-01	1750009216-01
Length	4.5M	15M
Description	Dipole Ant.704~960/1710~2700 LTE SMA	Dipole Ant.704~960/1710~2700 LTE SMA
Frequency	704~ 960 MHz 1710~2700MHz	704~ 960 MHz 1710~2700MHz
V.S.W.R.	<= 2.5 @704~ 960 MHz <= 2.5 @1710~2700MHz	<= 1.6 @704~ 960 MHz <= 1.6 @1710~2700MHz
Peak Gain	-1.76 dBi @ 699~960 MHz -1.96 dBi @1710~2700MHz	-9.07 dBi @ 699~960 MHz -14.12 dBi @1710~2700MHz
Polarization	Linear	Linear
Impedance	50 Ohm	50 Ohm

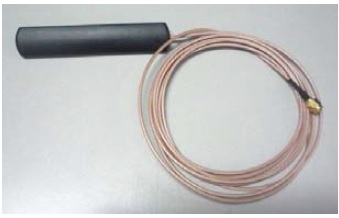

P/N:1750009217-01

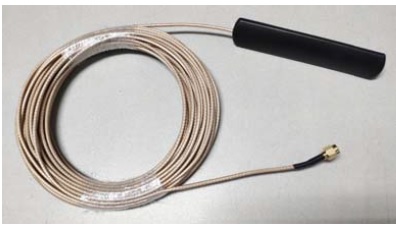

P/N:1750009216-01
