Purpose:
ICVG(CIoT) products started to support non-volatile (FRU) years ago. This article will introduce how to check this info through Advantech FRU utility.
Prerequisites
1- Please download Advantech FRU utility from Advantech website
2-Make sure all required drivers (i2c_i801 , i2c_dev)were installed on your OS
Target Audience:
All users who are using Advantech products and need to check FRU info from our platforms.
Procedures/Steps:
1.Install Required Compiler Collection & Tools
# apt-get install i2c-tools
2.Load / Check i2c drivers & devices
# modprobe i2c_dev
# modprobe i2c_i801
# lsmod |grep i2c
i2c_i801 28672 0
i2c_algo_bit 16384 1 igb
# i2cdetect -l
i2c-0 i2c igb BB I2C adapter
i2c-1 i2c igb BB I2C adapter
i2c-2 smbus SMBus I801 adapter at e000 SMBus adapter

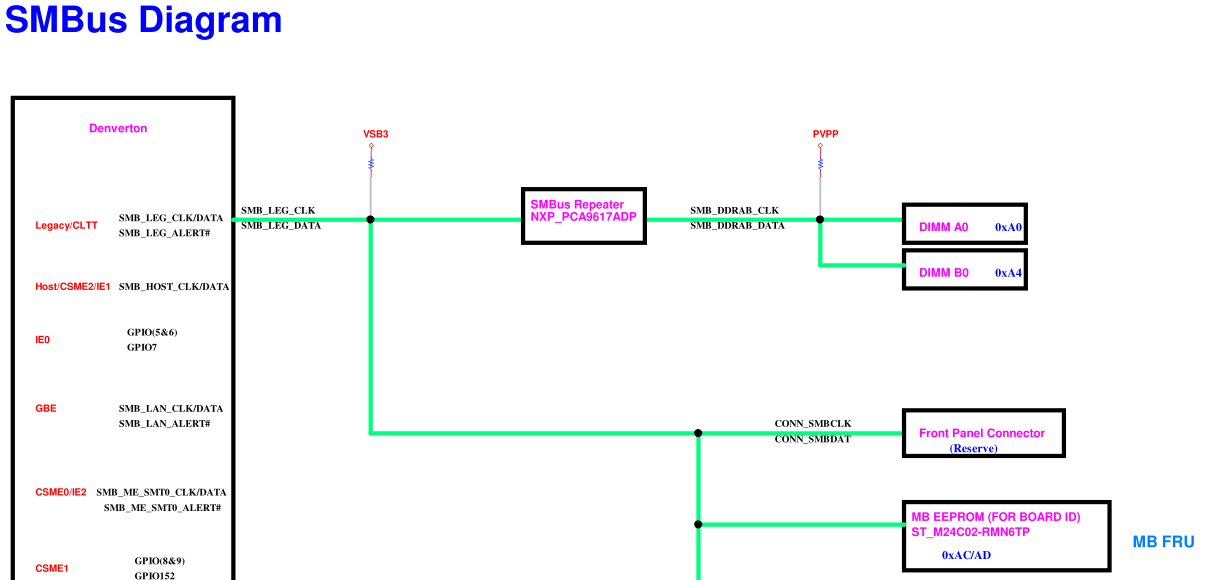

3.Check SPI device was there or user can retrieve Nothing after issuing commands , according to block diagram MB FRU device was located at address 0xAC.0xAD
4.We can check the device through command i2cdetect -f -y <device ID>
root@ubuntu:~# i2cdetect -l
i2c-1 i2c AST i2c bit bus I2C adapter
i2c-2 smbus SMBus I801 adapter at e000 SMBus adapter
i2c-0 smbus SMBus iSMT adapter at df57c000 SMBus adapter
root@ubuntu:~# i2cdetect -y 2
0 1 2 3 4 5 6 7 8 9 a b c d e f
00: -- -- -- -- -- 08 -- -- -- -- -- -- --
10: -- -- -- -- -- -- -- -- 18 -- -- -- -- -- -- --
20: -- -- -- -- -- -- -- -- -- -- -- -- -- 2d -- --
30: 30 31 -- -- 34 35 36 -- -- -- -- -- -- -- -- --
40: -- -- -- -- 44 -- -- -- -- -- -- -- -- -- -- --
50: 50 -- -- -- -- -- 56 -- -- -- -- -- -- -- -- --
60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
70: -- -- -- -- -- -- -- --
5.Run afru to retrieve FRU content , following contents are from template, for m/p delivery, it should include all necessary product info
root@N-Check:~/afru_02_36# ./afru -R
Found device on bus 2
FRU Information
===============
Chassis Part Number:
Chassis Type: Desktop
Chassis Serial Number:
Board Mfg:
Board Mfg Date: UTC Mon Jan 1 00:00:00 1996
Board Product: BP-Check
Board Serial:
Board Part Number:
Product Manufacturer:
Product Name: PN-Check
Product Part Number: PPN-Check
Product Version:
Product Serial:
Multirecord data 1: 05 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Comments
0 comments
Please sign in to leave a comment.
