Connecting to Teleconnect vDSL Module using LINUX OS

Purpose

This guide is to provide a simple step-by-step guidance for users to follow on how to connect to Teleconnect vDSL Module on Linux OS.

Location

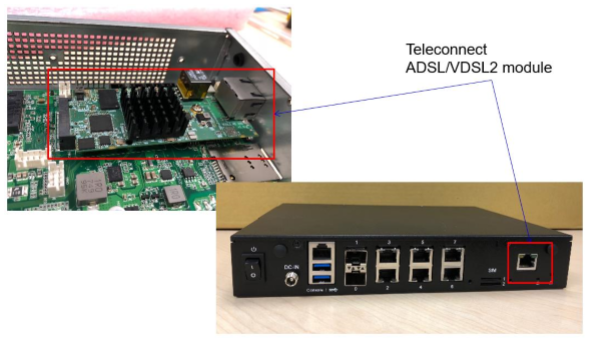

Mounting location on FWA-1012

Method

Step 1: The default ip address is 192.168.1.1. So first assign an IP in the same subnet on FWA-1012.

#ifconfig eth0 192.168.1.120

Step 2: Connect telnet to the IP which is just assigned.

#telnet 192.168.1.1
login: root
password: admin

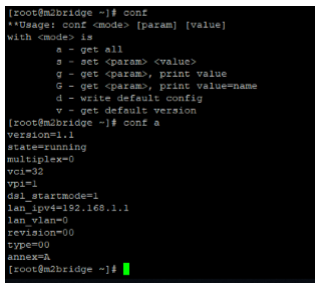

Step 3: Linux command line tool conf is used to read or modify config data.
