Purpose:
Guide user properly install memory modules by providing physical DIMM slots info and recommended memory configuration for DDR5 DIMM population for Intel 6th Xeon (Granite Rapids) processor based systems.
Target Audience:
For users who bought FWA-6173 series platforms

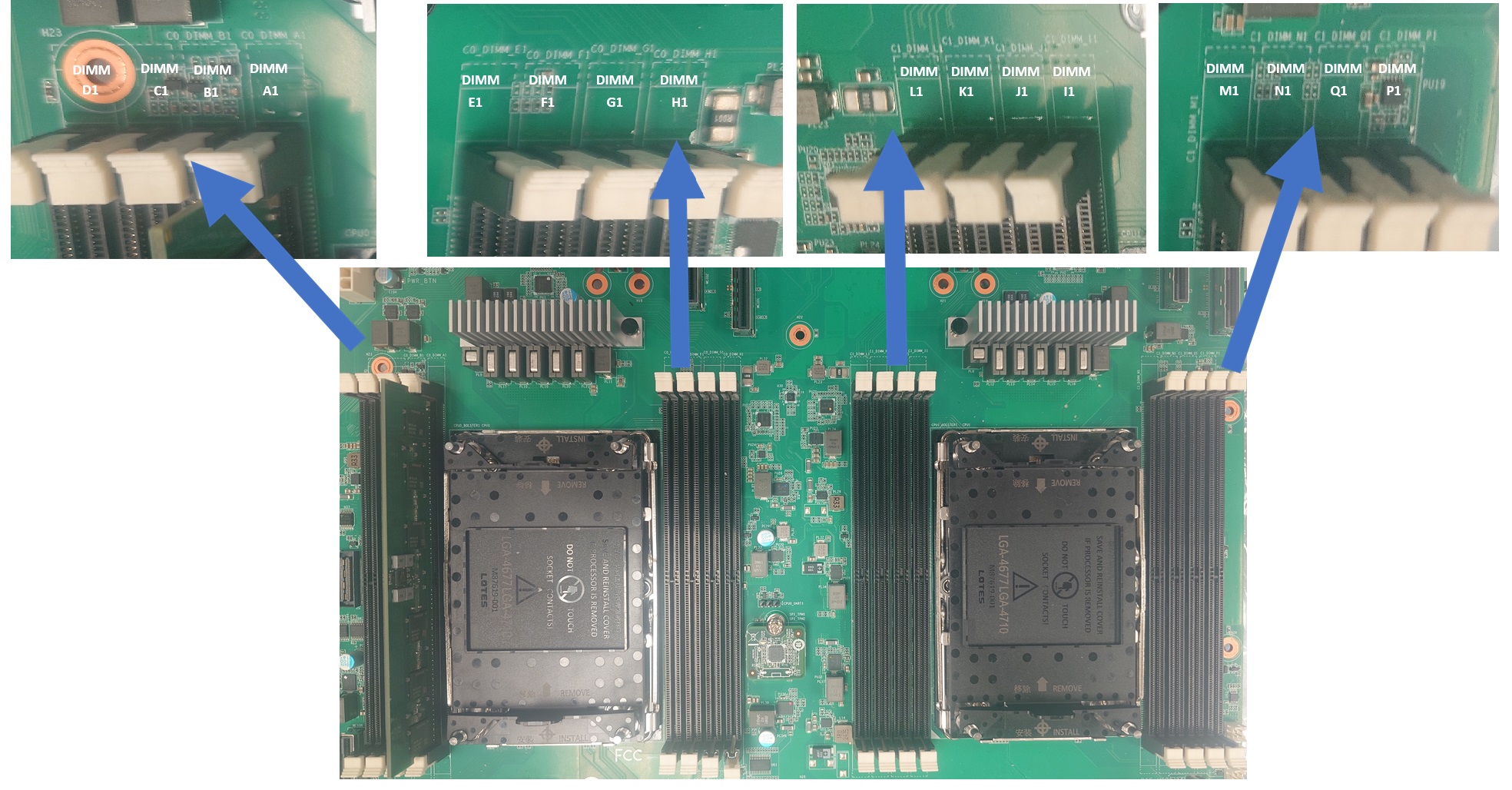

Top View of DIMM sockets:
1. Each FWA-6173 DIMM channel supports 1 DIMM (sockets) and total supports 16 DIMM sockets. Please refer following table to install DIMM in FWA-6173 DIMM socket.
Recommended DIMM populations (aligned sockets):
| DIMM Qty | iMC7 | iMC6 | iMC5 | iMC4 | CPU0 | iMC0 | iMC1 | iMC2 | iMC3 | iMC7 | iMC6 | iMC5 | iMC4 | CPU1 | iMC0 | iMC1 | iMC2 | iMC3 |
| Ch7 | Ch6 | Ch5 | Ch4 | Ch0 | Ch1 | Ch2 | Ch3 | Ch7 | Ch6 | Ch5 | Ch4 | Ch0 | Ch1 | Ch2 | Ch3 | |||
| D1 | C1 | B1 | A1 | E1 | F1 | G1 | H1 | E1 | F1 | G1 | H1 | M1 | N1 | Q1 | P1 | |||
| 2 | DIMM | DIMM | ||||||||||||||||
| 8 | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | ||||||||||
| DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | |||||||||||
| 16 | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM | DIMM |
