FWA-6171 NMC PCIe bus assignment

Purpose

The FWA-6171 series features 8 NMC (Network Mezzanine Card) slots, accommodating a variety of GbE, 10GbE, 40GbE, and 100GbE NMCs, with or without Advanced LAN bypass. In certain scenarios, manual adjustment of PCIe settings in the BIOS may be necessary. The following PCIe port (NMC Bay) assignments can assist customers in identifying which IOU settings need modification.

Target Audience

All users who are using Advantech ICVG(CIoT) platforms, including FWA-6171 series

Checks

CPU number	CPU2		CPU1
Chassis NMC sequence	NMC8	NMC7	NMC6	NMC5
PCIe port ID	IOU0 A/B	IOU0 C/D	IOU1 A/B	IOU1 C/D
CPU number	CPU2		CPU1
NMC sequence	NMC4	NMC3	NMC2	NMC1
PCIe port ID	IOU3 A/B	IOU3 C/D	IOU3 A/B	IOU3 C/D

In addition , for device connected to PCIe riser board inside chassis, it's assigned to CPU2 IOU3

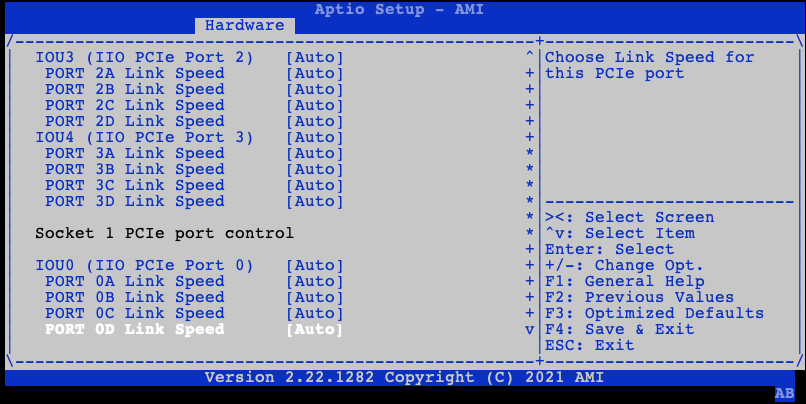

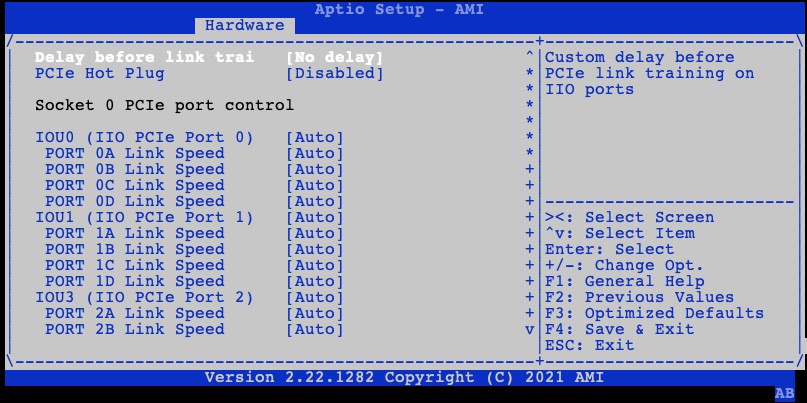

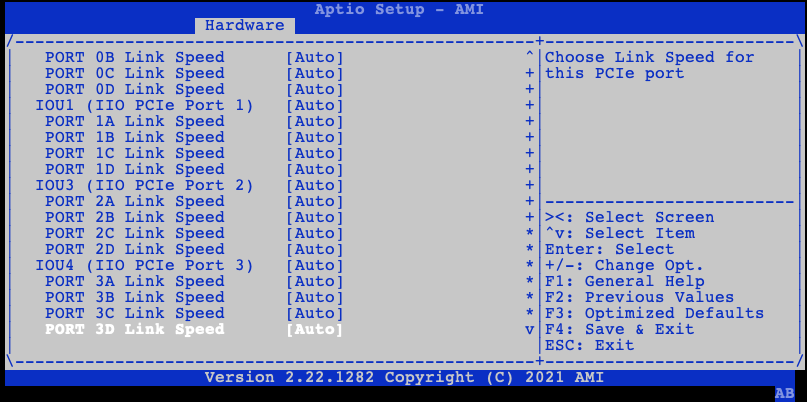

For some specific bandwidth settings, please go to BIOS Menu > Hardware > PCI Express Ports Configuration for each port control

*Socket 0 = CPU1

*Socket 1 = CPU2
