How to install LOM Board on FWA-3033

Purpose:

Sharing how to install LOM board on FWA-3033.

Target Audience:

Advantechers technician

FWA-3033 user

Scope:

FWA-3033

Steps:

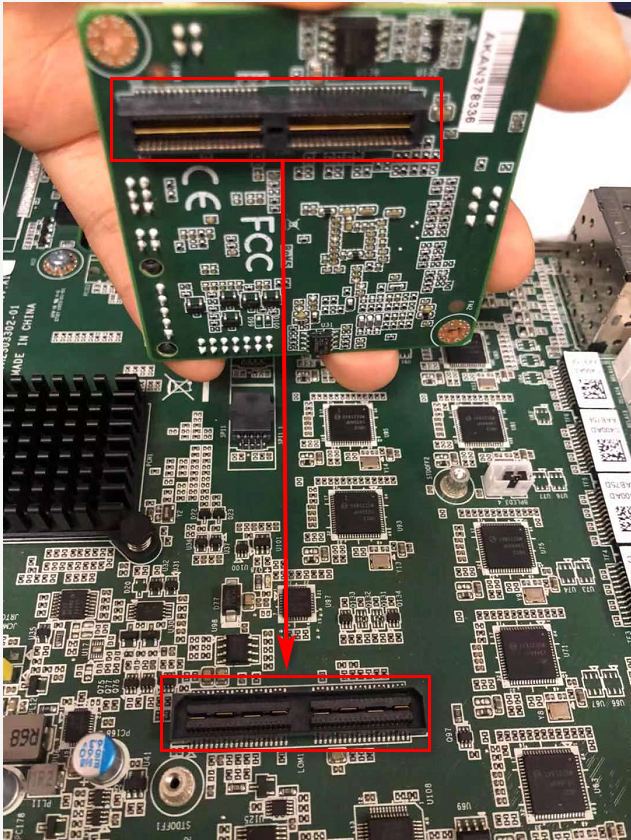

1. Make sure the LOM port is aligned with the MB LOM port then install it.

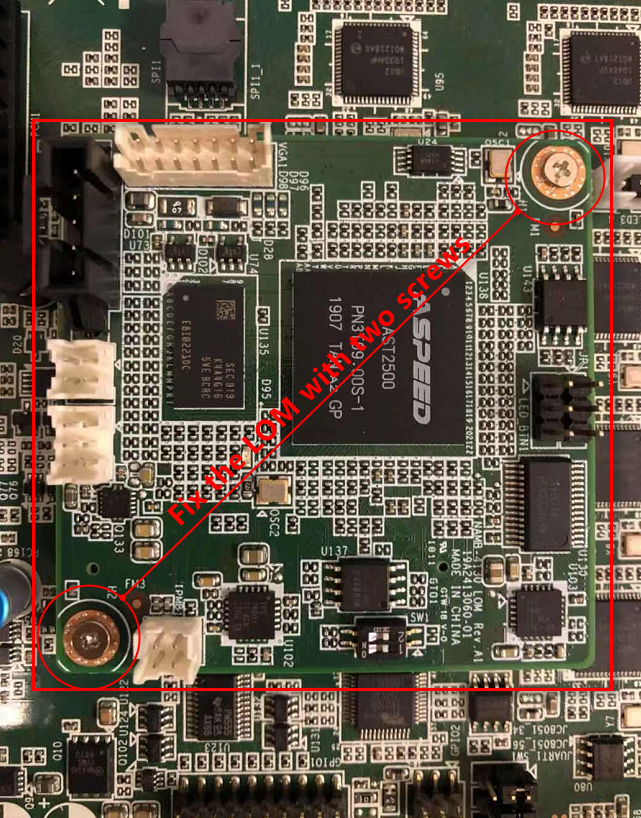

2. Fix the LOM with two screws.

Note:

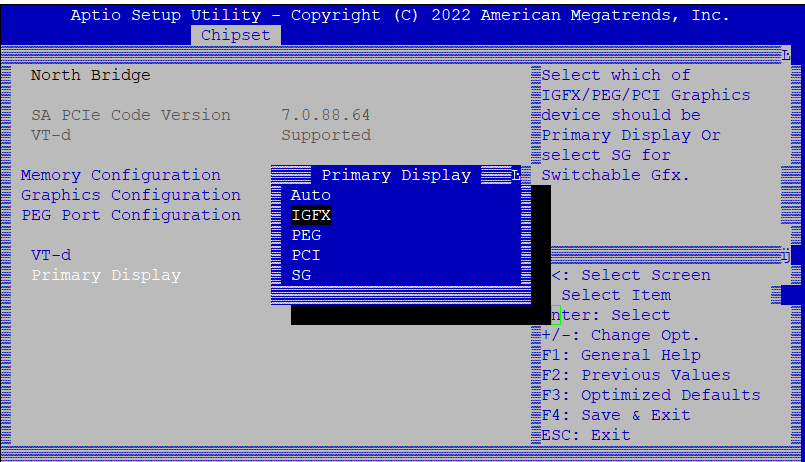

1. The default BIOS setting for "primary display" is "auto", so if LOM board is added, the dispaly output will change from onboard VGA/HDMI to BMC VGA.

If you want to use onboard VGA/HDMI with LOM Board mounted, please change "primary display" from "auto" to "IGFX"

 2. Attachment is FWA-3033_LOM_PIN definition
