Purpose:
It lists SKY-7223D DIMM Population table for customer reference,
Target Audience:
For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges :
- DIMM module installation and troubleshooting experience
Content:
CPU type introduction

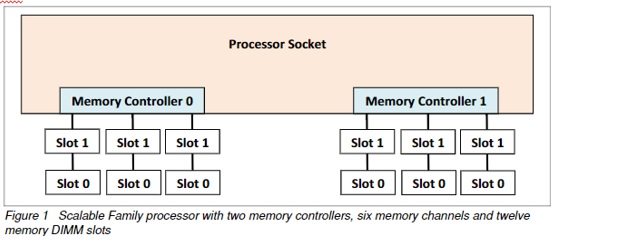

- SKY-7223D CPU type is theSkylake/Cascade Lake, this CPU is included 2 Memory Control Hub (MCH), and each MCH controls 3 DIMM channels,
- Recommending customers refer to the following table to install Triple mode (6 & 12 DIMMs) in the system for enhanced memory performance.
DIMM installation

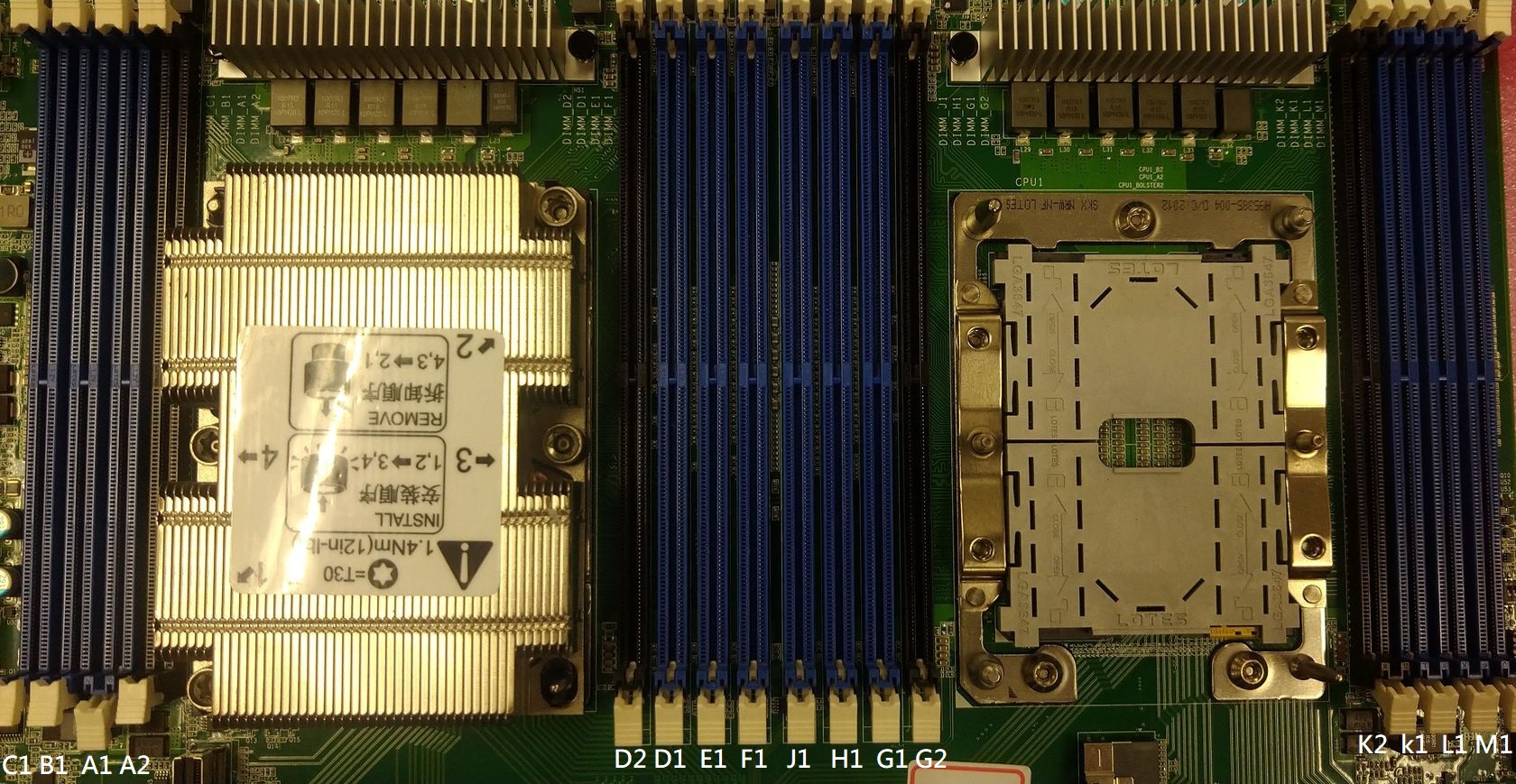

1. SKY-7223 blue DIMM socket is first (ex: A1, B1,...L1,M1), and Black DIMM socket is the second (ex: A2,D2,G2,K2), please Install DIMM module in Blue DIMM channel first by each DIMM channel.
2, Please recommend customer referring following picture and table to install DIMM modules in SKY-7223
3. When customer needs better memory performance, please refer following table to install even DIMM modules (e: 2,4,6,8...16) in SKY-7223.
DIMM module installation: We suggest customer referring table to install 6/12 DIMM modules for enable triple Channel function,
| ○ = memory location | CPU0 | CPU1 | ||||||||||||||||||
| Channel mode | Number of DIMM(s) | Number of DIMM(s) CPU0 | Number of DIMM(s) CPU1 | A1 | A2 | B1 | C1 | D1 | D2 | E1 | F1 | G1 | G2 | H1 | J1 | K1 | K2 | L1 | M1 | |
| single | 1 | 1 | 0 | ○ | ||||||||||||||||
| single | 2 | 1 | 1 | ○ | ○ | |||||||||||||||
| single | 3 | 2 | 1 | ○ | ○ | ○ | ||||||||||||||
| Dual | 4 | 2 | 2 | ○ | ○ | ○ | ○ | |||||||||||||
| single | 5 | 3 | 2 | ○ | ○ | ○ | ○ | ○ | ||||||||||||
| Triple | 6 | 3 | 3 | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||
| single | 7 | 4 | 3 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||||
| Dual | 8 | 4 | 4 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||
| single | 9 | 5 | 4 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
| single | 10 | 5 | 5 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||
| single | 11 | 6 | 5 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||
| Triple | 12 | 6 | 6 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||
| single | 13 | 7 | 6 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
| single | 14 | 7 | 7 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
| single | 15 | 8 | 7 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||
| single | 16 | 8 | 8 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
