Purpose
To guide user how to properly populate memory modules on SKY-7221 series.
Audience
All users who are using Advantech SKY-7221 series products
DIMM Population

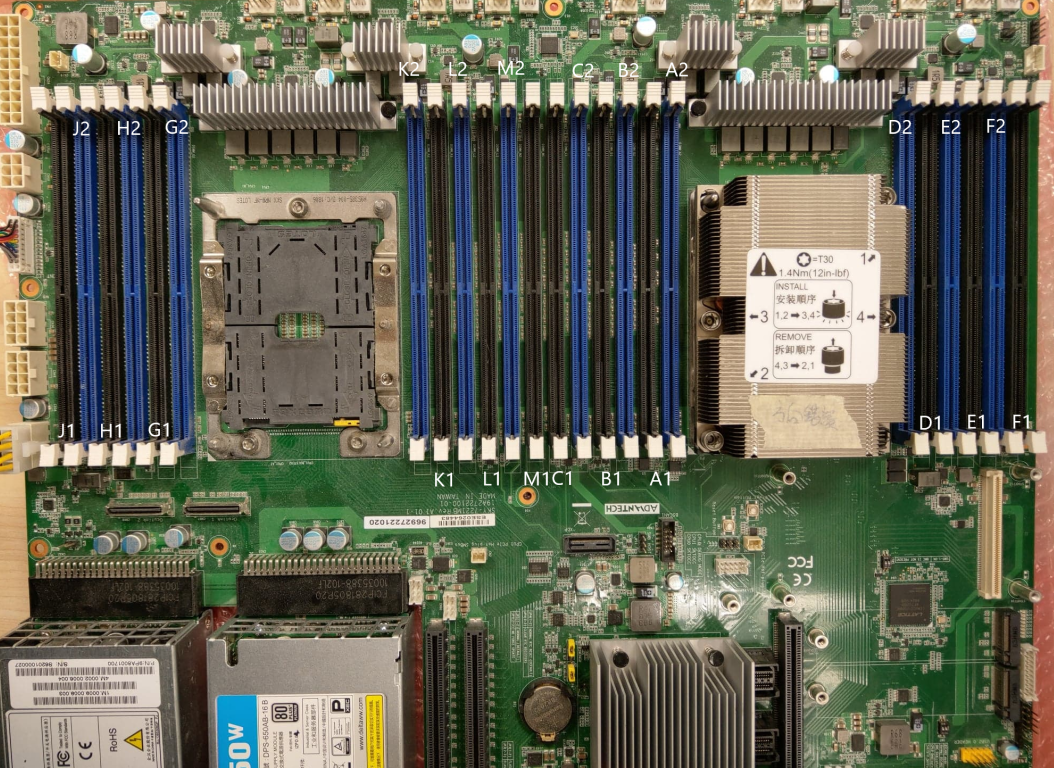

1. Each SKY-7221 DIMM channel has 2 DIMM sockets , the Black DIMM socket is the first (ex: A1,B1...L1,M1), and blue DIMM socket is second(ex: A2, B2,...L2,M2), please Install DIMM module in black DIMM channel first by each DIMM channel.

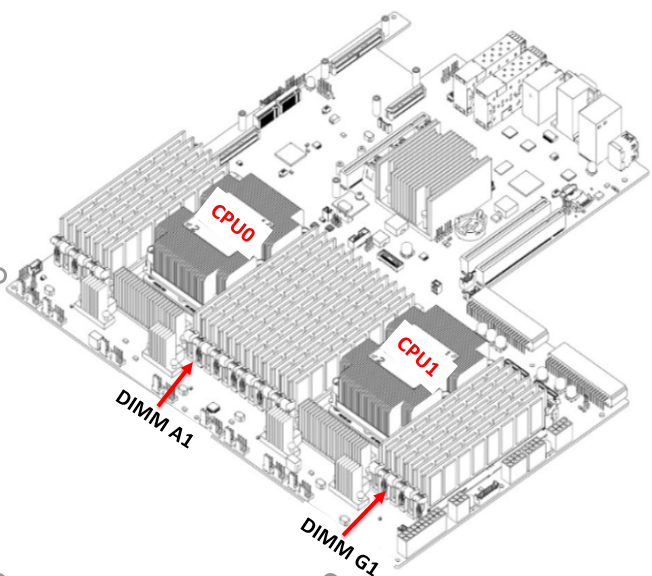

2, Please recommend customer referring following picture and table to install DIMM module in SKY-7221
3. When customer needs better memory performance, please refer following table to install even DIMM modules (e: 2,4,6,8...24) in SKY-7221.
DIMM module installation: we suggest customer referring following table to install 6/12/18/24 for enable Triple channel mode
| ○ = memory location | CPU0 | CPU1 | ||||||||||||||||||||||||||
| Channel mode | Number of DIMM(s) | Number of DIMM(s) CPU0 | Number of DIMM(s) CPU1 | A1 | A2 | B1 | B2 | C1 | C2 | D1 | D2 | E1 | E2 | F1 | F2 | G1 | G2 | H1 | H2 | J1 | J2 | K1 | K2 | L1 | L2 | M1 | M2 | |
| signal | 1 | 1 | 0 | ○ | ||||||||||||||||||||||||
| signal | 2 | 1 | 1 | ○ | ○ | |||||||||||||||||||||||
| signal | 3 | 2 | 1 | ○ | ○ | ○ | ||||||||||||||||||||||
| Dual | 4 | 2 | 2 | ○ | ○ | ○ | ○ | |||||||||||||||||||||
| signal | 5 | 3 | 2 | ○ | ○ | ○ | ○ | ○ | ||||||||||||||||||||
| Triple | 6 | 3 | 3 | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||||||||||
| signal | 7 | 4 | 3 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||||||||||||
| Dual | 8 | 4 | 4 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||||||||
| signal | 9 | 5 | 4 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||||||||||
| signal | 10 | 5 | 5 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||||||
| signal | 11 | 6 | 5 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||||||||
| Triple | 12 | 6 | 6 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||||
| signal | 13 | 7 | 6 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||||||
| signal | 14 | 7 | 7 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||||
| signal | 15 | 8 | 7 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||||
| Dual | 16 | 8 | 8 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||||
| signal | 17 | 9 | 8 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
| Triple | 18 | 9 | 9 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||||
| signal | 19 | 10 | 9 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||||
| signal | 20 | 10 | 10 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||||
| signal | 21 | 11 | 10 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||||
| signal | 22 | 11 | 11 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |||
| signal | 23 | 12 | 11 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ||
| Triple | 24 | 12 | 12 | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | ○ | |
