Why FWA-3260 10Gb port(X552) doesn't support 1G base-T SFP module

Purpose:

It lists FWA-3260 10Gb port(X552) doesn't support 1G base-T SFP module for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges  :

• SFP  troubleshooting experience

Content:

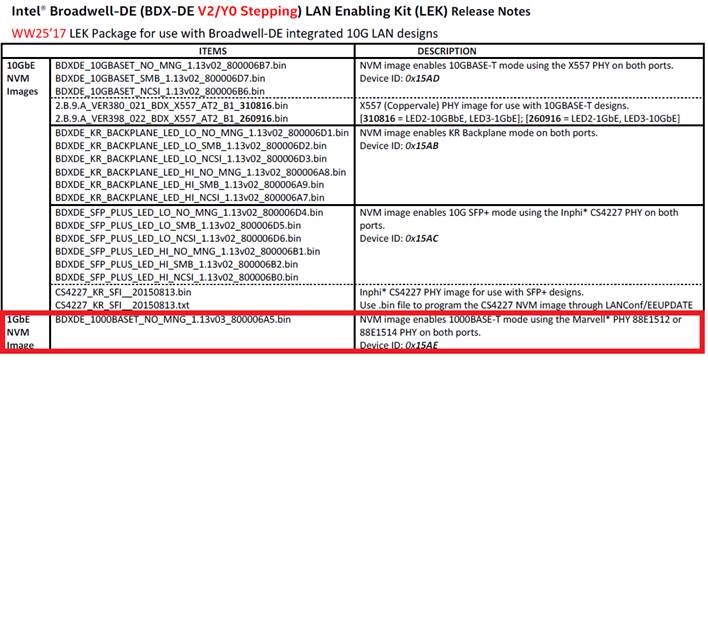

1. Please check following picture, FWA-3260 10Gb port(X552) NVM default didn't supported 1G base-T SFP module, and it needs to used special 1Gb NVM.

2. Advantech didn't upgrade special 1Gb NVM in FWA-3260, and it is a 1Gb base-T function limitation for FWA-3260 10Gb port(X552).
