The PSU sensor status of the FWA-3260A (with BMC) varies between BMC versions 1.08 and 1.10

Purpose:

It lists FWA-3260 BMC PSU status detection for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges  :

• BMC troubleshooting experience
• System installation & troubleshooting experience

Content:

A. FWA-3260A (with LOM) contains Advantech code based BMC , the status of "PSU presence detected" may confuse customer due to the display.

Please use following table to check system's BMC version,

# ipmitool mc info
Device ID : 121
Device Revision : 1
Firmware Revision : 1.08

And refer following table to check PSU status from discrete readings

BMC 1.04 (or early version) & V1.10  New BMC was following this definition	BMC 1.08
working PSU = discrete 0x0000 AC lost PSU = discrete 0x0800 Not Presence = discrete 0x0100	No PSU present in the system =discrete  0x0000 working PSU = discrete 0x0100 AC lost PSU = discrete 0x0900 Not Presence = discrete 0x0800

B. If the PSU status is not one of the above 3 values(ex: 0x0300), it means PSU module's self-test as fail, please contact Advantech RMA to exchange new PSU module ASAP.

# ipmitool sensor list | grep PSU
PSU1     | 0x0    | discrete | 0x0100| na | na | na | na | na | na
PSU2     | 0x0    | discrete | 0x0300| na | na | na | na | na | na
PSU-WATT | 45.000 | Watts    |    ok | na | na | na | na | na | na

C. If PSU1 & PSU2  are reporting 0x0100(BMC FW:1.10 or 0x0000 (BMC FW1.08)

PSU1             | 0x0        | discrete   | 0x0100| na        | na        | na        | na        | na        | na
PSU2             | 0x0        | discrete   | 0x0100| na        | na        | na        | na        | na        | na

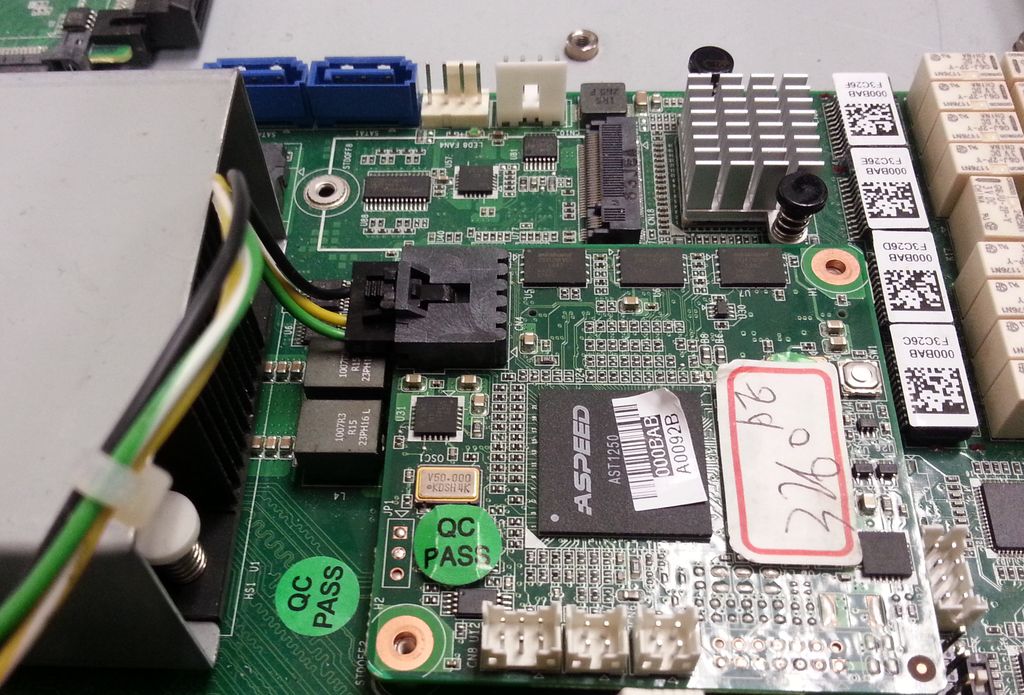

It means FWA-3260 LOM CN4  didn't connected PSU's IPMB 4 PIN cable, please contact Advantech RMA to check PSU's IPMB cable connection,

Target Audience:

 Everyone who uses this appliance

Minimum requirement:

• FWA-3260A (with LOM)
