FWA-3270 LAN bypass Jumper setting

Purpose:

It lists FWA-3270 Bypass jumper setting  for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges  :

• Linux troubleshooting experience

Content:

FWA-3270 series supports dual bypass mode, please check Jumper setting and choose a bypass mode when customer needs using bypass function

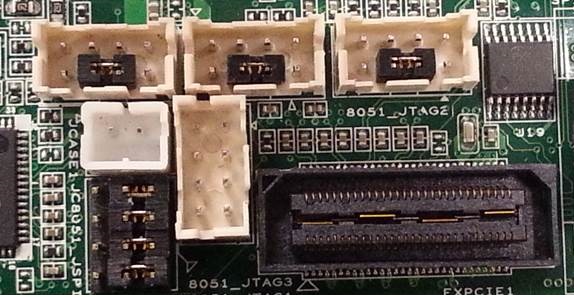

A. Standard LAN bypass Setting ,please refer following photo to set jumper.

A1. It uses I2C bus to control bypass function, please use standard LAN bypass utility to control FWA-3270 MB bypass function, bypass utility is bypass utility  is 3270bps_002.tar.gz

A2. Recommending user sets Bypass jumper as Advanced LAN bypass setting if user installs LOM in FWA-3070, We don't release the IPMI command SOP to control standard Bypass function,

B. Advanced LAN bypass Setting ,please refer following photo to set jumper.

it uses PCIe bus to control bypass function, please use standard LAN bypass utility to control FWA-3270 MB bypass function, bypass utility is the lbpcu.
