FWA-6170 NMC PCIe and I2C bus assignment

Purpose

FWA-6170 8 x NMC (Network Mezzanine Card) slots for a wide range of GbE, 10GbE, 40GbE and 100GbE NMCs with or without Advanced LAN bypass.  Having lots of NMC installed, the PCIe port assignment may help

Target Audience

All users who are using Advantech ICVG(CIoT) platforms, including FWA-6170 series

Checks

CPU number	CPU1		CPU0

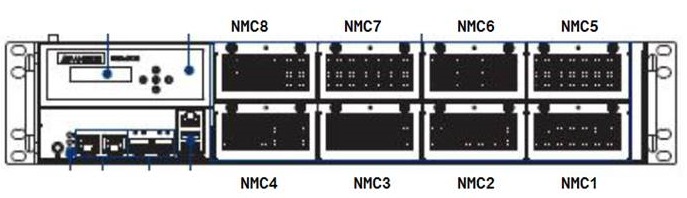

Chassis NMC sequence	NMC8	NMC7	NMC6	NMC5
BMC i2c switch sequence	8(0x80)	7(0x40)	6(0x20)	5(0x10)
PCIe BUS ID	Port 1 C/D	Port 1 A/B	Port 1 C/D	Port 1 A/B
CPU number	CPU1		CPU0
NMC sequence	NMC4	NMC3	NMC2	NMC1
BMC i2c switch sequence	4(0x08)	3(0x04)	2(0x02)	1(0x01)
PCIe BUS ID	Port 3 C/D	Port 3 A/B	Port 3 C/D	Port 3 A/B
