BMC Dedicate NIC control on SKY-8101

Avatar
Justin Yang
  • Updated
Follow

Pre-requirement & reference:

How to approach BMC on Advantech CIoT platforms

How to set BMC IP address

How to setup BMC IP address via BIOS

* Advantech’s IANA Enterprise Number used for OEM commands is 002839h

* IANA = Internet Assigned Number Authority



Purpose:

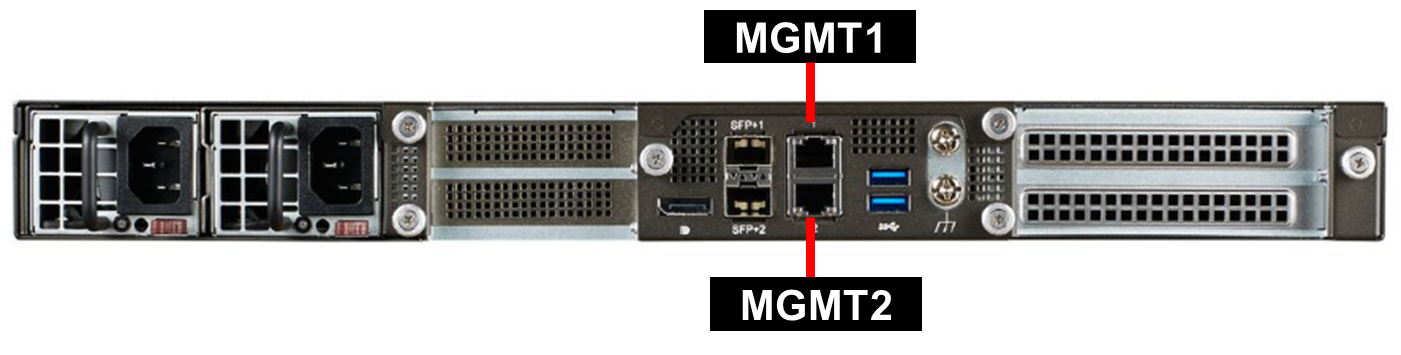

This article will introduce how to switch Management Ethernet ports (front panel) to dedicate BMC usage or shared NIC on SKY-8101 series.

Target Audience:

All users who are using Advantech SKY-8101 series products

Use Cases:

For user who wants to physically isolate management traffic to BMC alone , we will suggest to switch MGT port to "dedicate" mode.

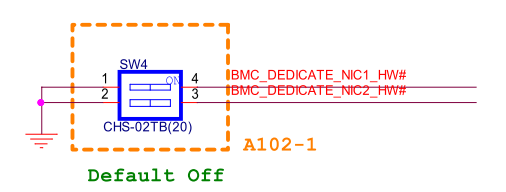

How to approach this?  By switch set on SW4



Figure from SCM.



Let's check the difference on SKY-8101 in Operating System in below



Default :  Shared NIC mode,  both mgmt devices can be seen in OS Ethernet list.



[root@sky-8101 ~]# ip a l
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
 inet 127.0.0.1/8 scope host lo
 valid_lft forever preferred_lft forever
 inet6 ::1/128 scope host
 valid_lft forever preferred_lft forever
2: eth0_sfpplus1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3a brd ff:ff:ff:ff:ff:ff
3: eth0_sfpplus2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3b brd ff:ff:ff:ff:ff:ff
4: eth0_mgmt1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP qlen 1000
 link/ether 74:fe:48:1e:c9:39 brd ff:ff:ff:ff:ff:ff
 inet 172.17.10.95/23 brd 172.17.11.255 scope global dynamic eth0_mgmt1
 valid_lft 1454sec preferred_lft 1454sec
 inet6 fe80::7e37:138f:24a4:df16/64 scope link
 valid_lft forever preferred_lft forever
5: eth0_mgmt2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3a brd ff:ff:ff:ff:ff:ff
6: eth4: <NO-CARRIER,BROADCAST,MULTICAST,SLAVE,UP> mtu 1500 qdisc mq master bond0 state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:f9 brd ff:ff:ff:ff:ff:ff
7: eth5: <NO-CARRIER,BROADCAST,MULTICAST,SLAVE,UP> mtu 1500 qdisc mq master bond0 state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:f9 brd ff:ff:ff:ff:ff:ff
8: bond0: <NO-CARRIER,BROADCAST,MULTICAST,MASTER,UP> mtu 1500 qdisc noqueue state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:f9 brd ff:ff:ff:ff:ff:ff



Set 1-4 to ON ; 2-3 to OFF   --- > NIC1 for dedicate use , OS CANNOT detect mgmt1 port, only NIC2 is on the list. Both mgmt ports are able to access BMC through default IP 192.168.1.1/192.168.2.2  , fine to open web-ui.

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
 inet 127.0.0.1/8 scope host lo
 valid_lft forever preferred_lft forever
 inet6 ::1/128 scope host
 valid_lft forever preferred_lft forever
2: eth0_sfpplus1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3a brd ff:ff:ff:ff:ff:ff
3: eth0_sfpplus2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3b brd ff:ff:ff:ff:ff:ff
4: eth0_mgmt2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3a brd ff:ff:ff:ff:ff:ff
5: eth3: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:f9 brd ff:ff:ff:ff:ff:ff
6: eth4: <NO-CARRIER,BROADCAST,MULTICAST,SLAVE,UP> mtu 1500 qdisc mq master bond0 state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:fa brd ff:ff:ff:ff:ff:ff
7: bond0: <NO-CARRIER,BROADCAST,MULTICAST,MASTER,UP> mtu 1500 qdisc noqueue state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:fa brd ff:ff:ff:ff:ff:ff



Set 1-4 to OFF ; 2-3 to ON  --- > NIC2 for dedicate use , OS CANNOT detect mgmt2 port but NIC1 port.

Both mgmt ports are able to access BMC through default IP 192.168.1.1/192.168.2.2  , fine to open web-ui

[root@sky-8101 ~]# ip a l
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
 inet 127.0.0.1/8 scope host lo
 valid_lft forever preferred_lft forever
 inet6 ::1/128 scope host
 valid_lft forever preferred_lft forever
2: eth0_sfpplus1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3a brd ff:ff:ff:ff:ff:ff
3: eth0_sfpplus2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3b brd ff:ff:ff:ff:ff:ff
4: eth0_mgmt1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:39 brd ff:ff:ff:ff:ff:ff
5: eth3: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:f9 brd ff:ff:ff:ff:ff:ff
6: eth4: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:fa brd ff:ff:ff:ff:ff:ff
7: bond0: <NO-CARRIER,BROADCAST,MULTICAST,MASTER,UP> mtu 1500 qdisc noqueue state DOWN qlen 1000
 link/ether 8e:b3:4b:49:d8:5a brd ff:ff:ff:ff:ff:ff



Set 1-4 to ON ; 2-3 to ON --- > Both NIC1/NIC2 for dedicate use , OS CANNOT detect both mgmt ports

Both mgmt ports are able to access BMC through IP 192.168.1.1/192.168.2.2  , fine to open web-ui

[root@sky-8101 ~]# ip a l
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
 inet 127.0.0.1/8 scope host lo
 valid_lft forever preferred_lft forever
 inet6 ::1/128 scope host
 valid_lft forever preferred_lft forever
2: eth0_sfpplus1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3a brd ff:ff:ff:ff:ff:ff
3: eth0_sfpplus2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:1e:c9:3b brd ff:ff:ff:ff:ff:ff
4: eth2: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:f9 brd ff:ff:ff:ff:ff:ff
5: eth3: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state DOWN qlen 1000
 link/ether 74:fe:48:09:3a:fa brd ff:ff:ff:ff:ff:ff
6: bond0: <NO-CARRIER,BROADCAST,MULTICAST,MASTER,UP> mtu 1500 qdisc noqueue state DOWN qlen 1000
 link/ether 36:84:93:3a:1f:90 brd ff:ff:ff:ff:ff:ff
