Purpose:

It lists FWA-2012 M.2 storage module support type for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges :

FWA-2012 M.2 socket(CN6) only supports SATA function, please choose SATA M.2 2280 type to install in FWA-2012 M.2 socket (CN6)

Following list is supported M.2 2280 type:

SQF-SM8 830,M.2 2280 SATA SSD

Please don't install following M.2 type in FWA-2012 M.2 sockect (CN6)

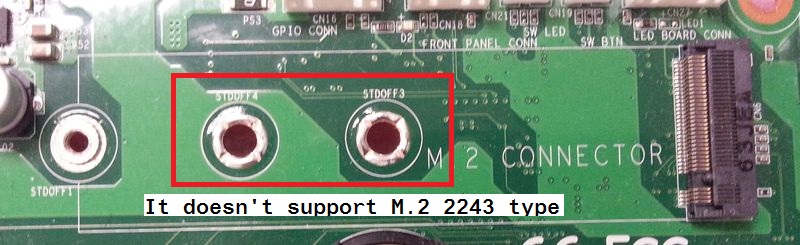

SQF-SM4 640,M.2 2242 SATA SSD (mechanism limitation)

SQF-CM8 920,M.2 2280 PCIe/NVMe SSD (specification limitation)

SQF-CM3 710,M.2 2230 PCIe/NVMe SSD (specification limitation)
