How many Ethernet Interfaces on FWA-1010VC will be detected in OS?

Purpose:

Since the FWA-1010VC series models include a SoHo switch, identifying all Ethernet ports on this machine is a frequently asked question. This article will provide a detailed introduction to these physical interfaces

Target Audience:

All users who are using Advantech FWA-1010VC series models.

Use Cases:

Due to SoHo switch design on FWA-1010VC ,  the OS will have interfaces less than the label in front panel.

In OS :  User should recognize 4 I354 devices from PCI list

00:14.0 Ethernet controller: Intel Corporation Ethernet Connection I354 (rev 03)
00:14.1 Ethernet controller: Intel Corporation Ethernet Connection I354 1.0 GbE Backplane (rev 03)
00:14.2 Ethernet controller: Intel Corporation Ethernet Connection I354 (rev 03)
00:14.3 Ethernet controller: Intel Corporation Ethernet Connection I354 (rev 03)

As mentioned above, it appears 4 in total is expected  =   2 for dual media ports (note fiber or copper only) ,  1 connect to SoHo switch ,  1 for port 6 (rightest one on front panel)

The labels on the box :

label 0 : Dual Media 1st port  (eth0 in block diagram)
label 1 :  Dual Media 2nd port  (eth2 in block diagram)
label 2 - 5 : Port for SoHo switch (eth1 the rightest 4 ports from 88E6141)
label 6 :  generic Ethernet port (eth3 in block diagram)

Please visit following link for detail behavior on dual media ports (ctrl+click the link or [macos] cmd + click the link)

Dual-Media-FWA-1010VC

## Check in OS , User will find the port which connect to SoHo switch is always in "UP" Status, even though front panel port 2 ~ 5 has no cable connected

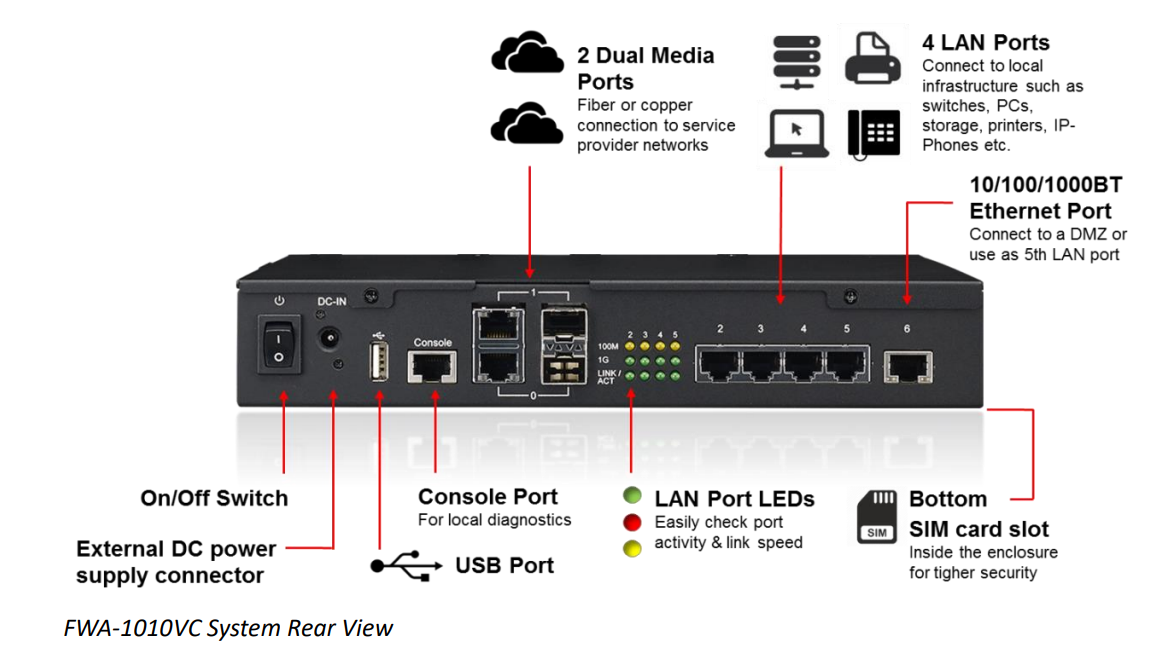

## Rear View (labels)

## Block Diagram - Green circles with ethx for example.  ​
