FWA-1212VC SIM Socket Mapping

Purpose:

It lists FWA-1212VC SIM Socket Mapping for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges  :

• LTE troubleshooting experience
• Hardware troubleshooting experience

Content:

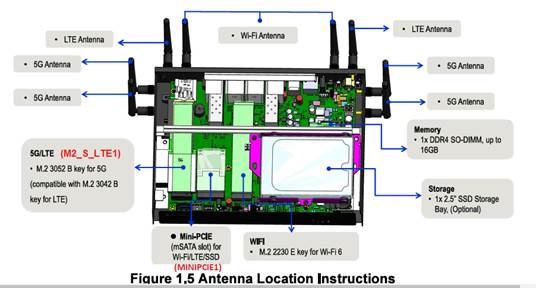

Please review FWA-1212VC user manual and following table,

• If user needs using FWA-1212VC’s Dual LTE modules function, Please recommend user to order a FWA-1212VC-WWAN5 (M.2 module) and a FWA-1212VC-WWAN6 (PCIE module) and install these modules in FWA-1212VC .

• FWA-1212VC’s M2_S_LTE1 socket supports SIM card switched function, user needs to install Sierra EM7455 module and key-in command to switch SIM socket.

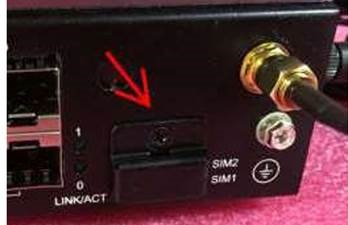

  FWA-1212CV front panel SIM socket	FWA-1212VC socket	WWAN module P/N
  SIM 1	M2_S_LTE1	FWA-1212VC-WWAN5 (FWA-1212VC_LTE_M.2 Module+Antenna/BBT Live ) M.2 module model name : Quectel EM05EFA-512-SGAS
  SMI 2
  SMI 2	MINIPCIE1	FWA-1212VC-WWAN6 (FWA-1212VC_LTE_mini-PCIe Module+Antenna/BBT Live)  PCIe module model name: Quectel EC25EUXGR-MINIPCIE
