Caution:

Please get in touch with your Advantcher to request a BIOS firmware.

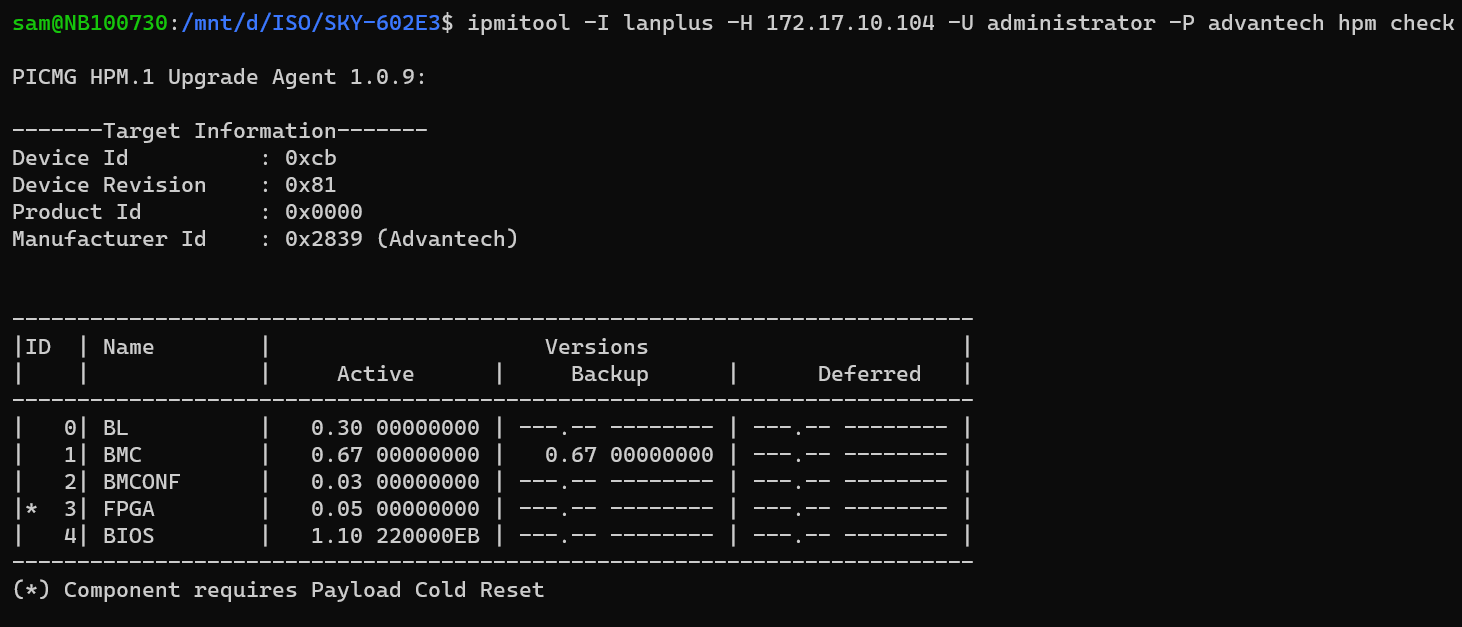

Two ways for BIOS FW upgrade, one uses the AfuEfix64 command, and the other way uses the ipmitool command.

Please, refer to the link below for details on the steps for the upgrade:

https://advantech-ncg.zendesk.com/hc/en-us/articles/360049191271-How-to-upgrade-firmware-via-IPMI-

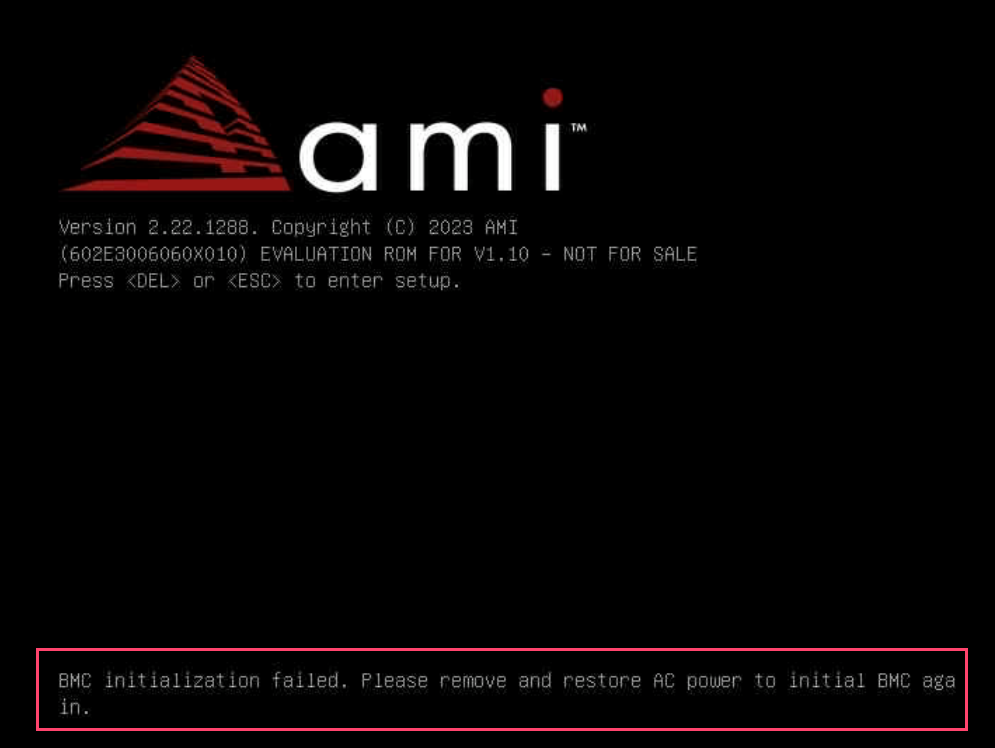

Before the BIOS FW upgrade, recheck the fru status, otherwise the error following will show up.

Refer to the URL FRU update

Purpose:

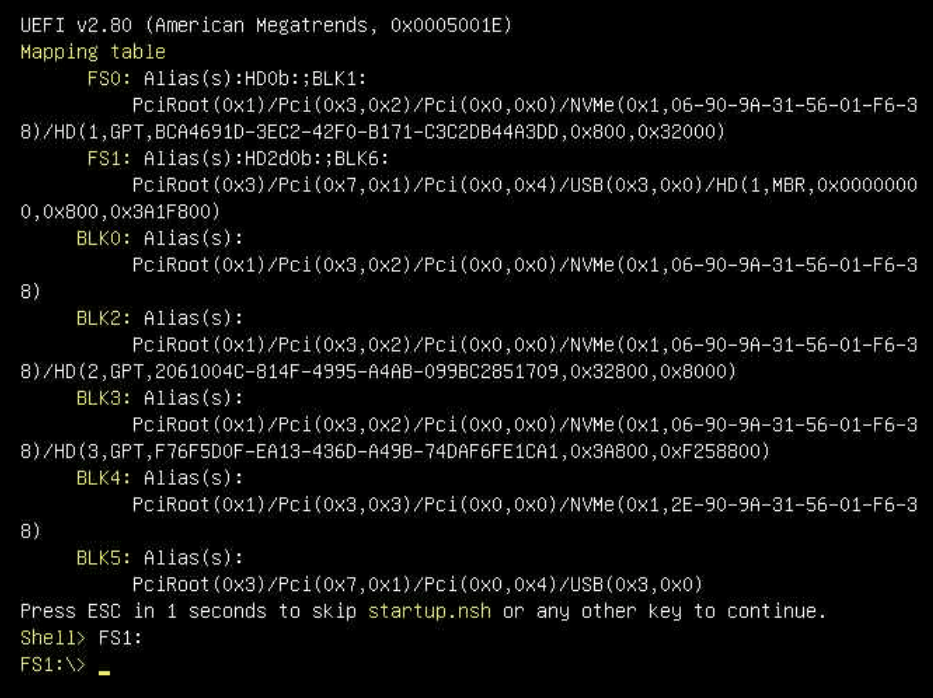

This article aims to instruct users on how to upgrade BIOS under the UEFI shell.

Target Audience:

All users owning the SKY-6 series platform with shell commands experience.

Please take a look at the following link internally.

Firmware (BIOS, BMC, EC) update SOP for ISG series products - Google 試算表

Steps:

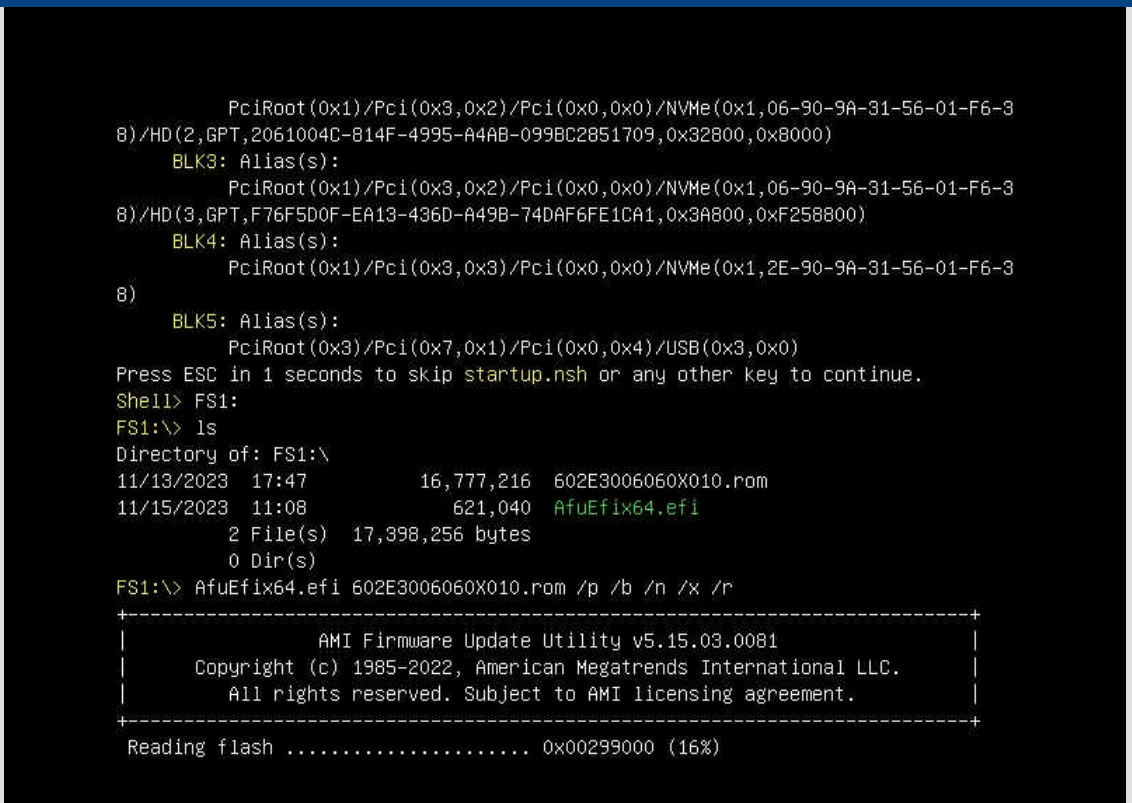

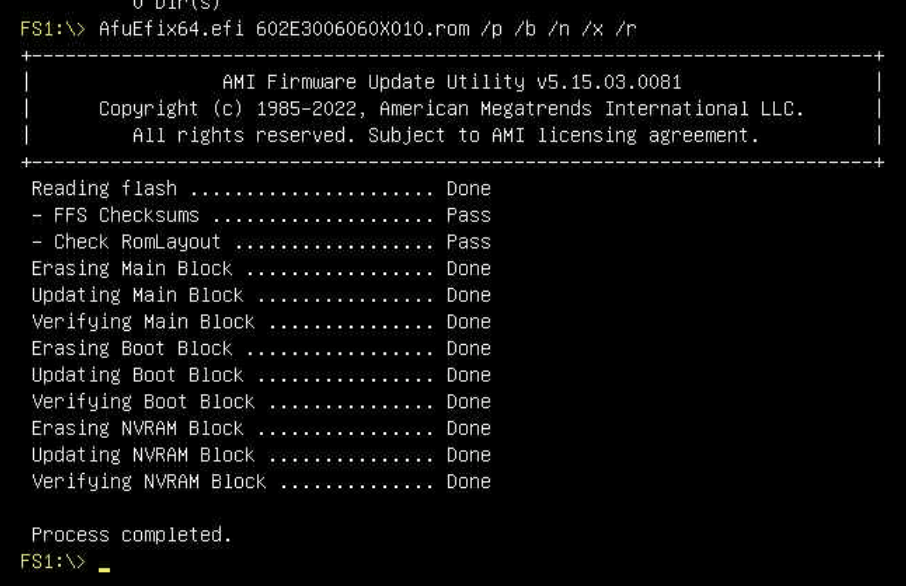

1. Insert your BIOS firmware, "602E3006060X010" and "AfuEfix64" under the same folder in the USB flash drive. Insert the USB flash into the USB port on SKY-602E3 server.

Afu.efi: refer AMI website to download (https://www.wimsbios.com/amiflasher.jsp)
602E3006060X010: attached in this article, refer to the internal link \\biosserver.advantech.corp\Binary\AMD_Siena\SKY-602E3\V110\X010

2. Press [del] when POST shows up, check the BIOS version currently.
