Pin assignment of AC and DC cables to an external power supply

Purpose:

Reference guide for non-experience power cabling users.

Target Audience:

SKY-8132S-11/SKY-8134S-11

Explanation:

Refer SKY-8132S-11 and SKY-8134S-11 QSG for getting more understanding the systems.

https://advantech-ncg.zendesk.com/hc/en-us/sections/4406930605081-SKY-8132S-11

https://advantech-ncg.zendesk.com/hc/en-us/sections/14459552596249-SKY-8134S-11

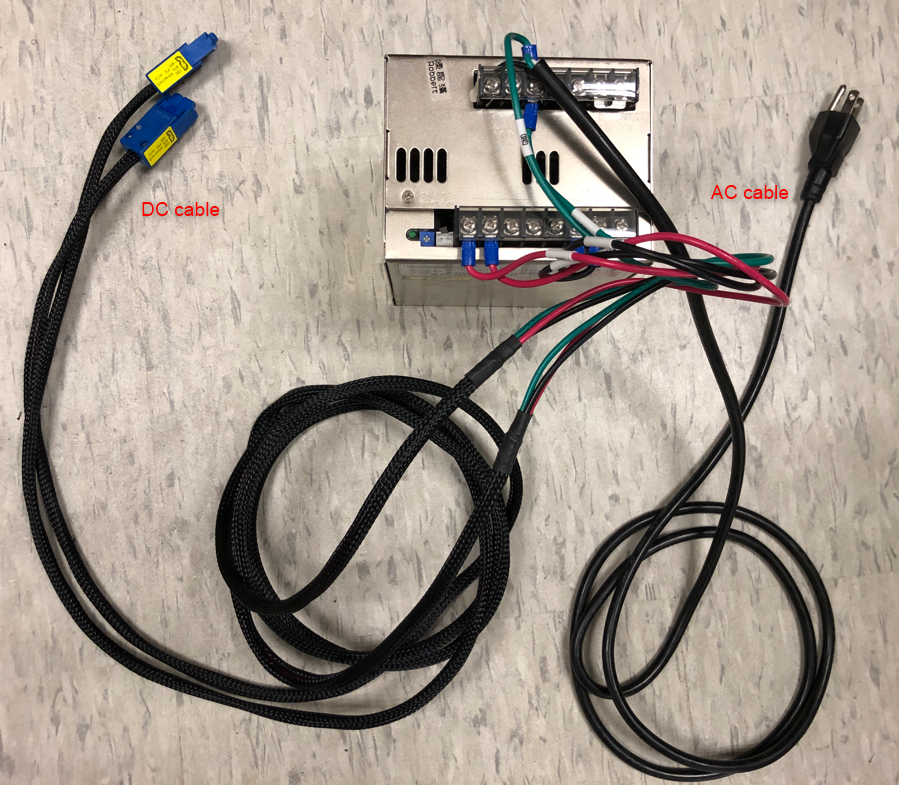

Take PSP-600-48 AC-DC power supply for guiding reference.

https://www.mouser.tw/datasheet/2/260/PSP_600_SPEC-1511885.pdf

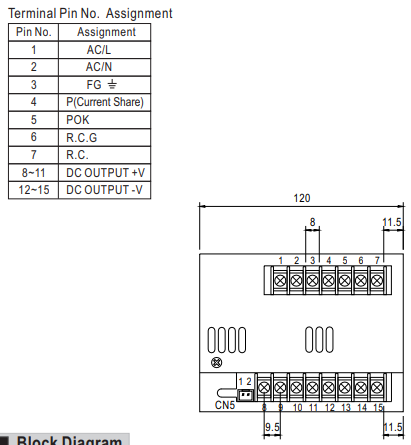

Pin assignment for DC cables and AC cables:

	PSU Pin #
2* red (DC cable)	8~11
2* black (DC cable)	12~15
2* green (DC cable)	3
1* green (AC cable)	3
1* white (AC cable)	2
1* black (AC cable)	1

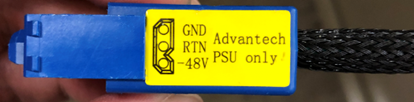

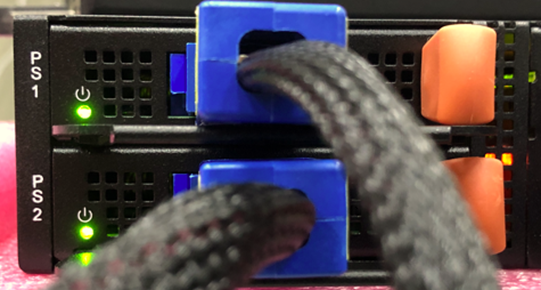

• DC cables will be shipped with SKY servers.

• AC cables will not be shipped with SKY servers, users have to buy it locally
