FWA-1112VC Ethernet Ports and PCIE BUS comparison

Purpose:

It lists FWA-1112 Ethernet port mapping sequence for customer reference,

Target Audience:

For Advantech TSE, RBU AE, outsourcing service engineer(s) and End customer with the following knowledges  :

• HW & Ethernet troubleshooting experience

Content:

1. Following table is FWA-1112(with Standard BIOS) Ethernet Ports and PCIE BUS comparison,
2. Most Linux Ethernet port sequence are followed PCI BUS ID, Please check FWA-1112VC Ethernet's PCI ID to defined Ethernet port sequence.
3. LAN 2~5 (X553 NIC) PCIE ID will be changed when user install/remove M.2 SATA module.
4. LAN 2 & 3 (X553 NIC) PCIE ID will be changed when user install/remove M.2 SATA module and set BIOS/SR-IOV Support as Enabled or Disabled

M.2 SATA storage installation	BIOS SR_IOV setting	0	1	2	3	4	5
		Intel i211 (Intel i210)	Intel i211 (Intel i210)	X553	X553	X553	X553
Yes	Enabled	06:00.0	07:00.0	0a:00.0	0a:00.0	08:00.0	08:00.1
	Disabled (Default)	06:00.0	07:00.0	09:00.0	09:00.0	08:00.0	08:00.1
No	Enabled	07:00.0	08:00.0	0b:00.0	0b:00.1	09:00.0	09:00.1
	Disabled (Default)	07:00.0	08:00.0	0a:00.0	0a:00.1	09:00.0	09:00.1

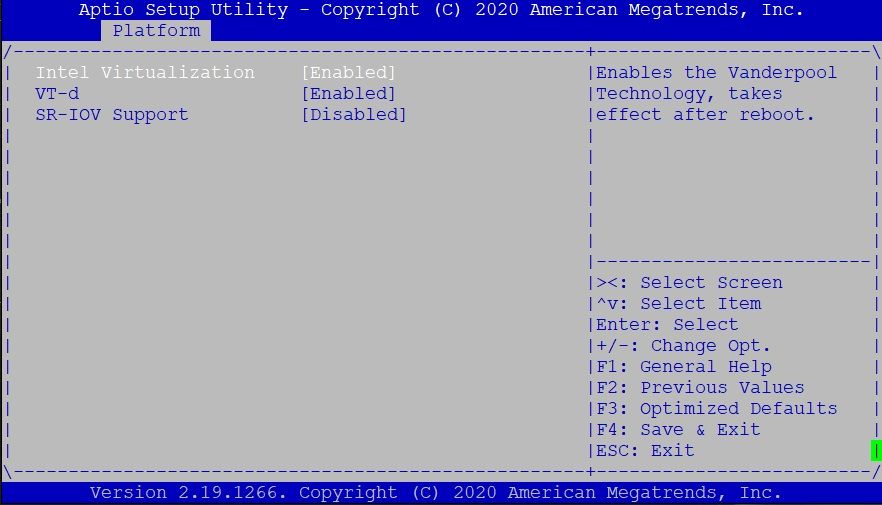

FWA-1112VC BIOS Virtualization/"SR-IOV Support"  setting item
