Purpose:
The PCIe card slot identification and PCIe speed modification under BIOS are useful if more than PCIe boards in SKY-7632D platform
Audience
For the engineers who have experience on Advantech x86 platform and familiar with BIOS options
Prerequisite:
1. SKY-7632D User Manual
2. PCIe board
Procedure:

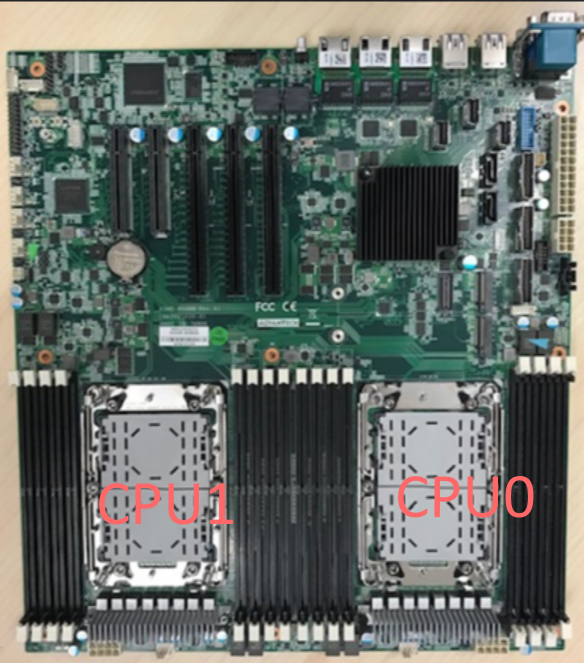

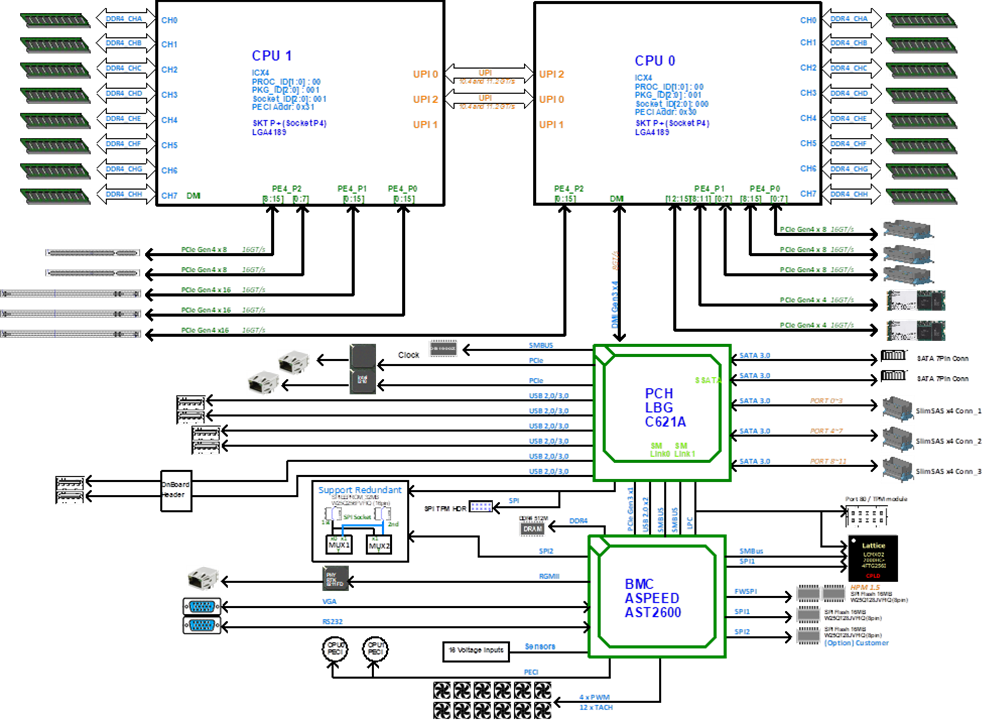

- Identify the PCIe board location on ASMB-956 MB and PCI lane from CPU (Socket 0 or Socket 1)

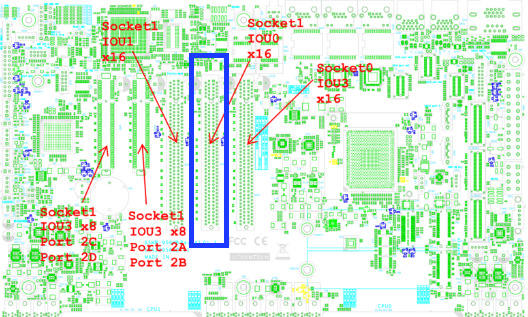

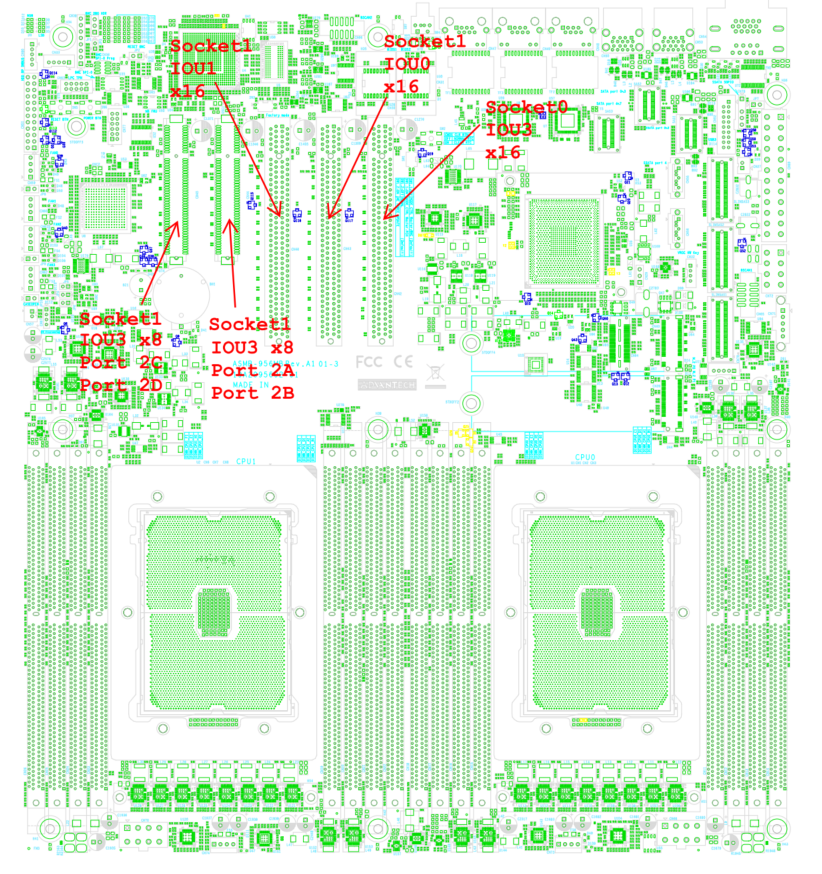

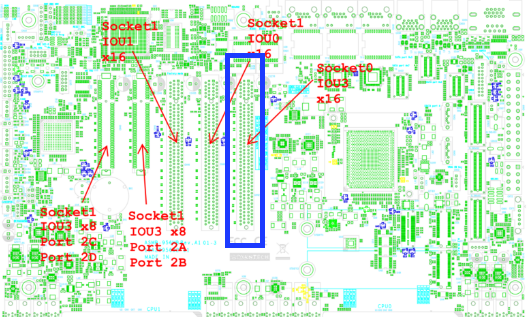

- Check Riser Card's PCIe lane,

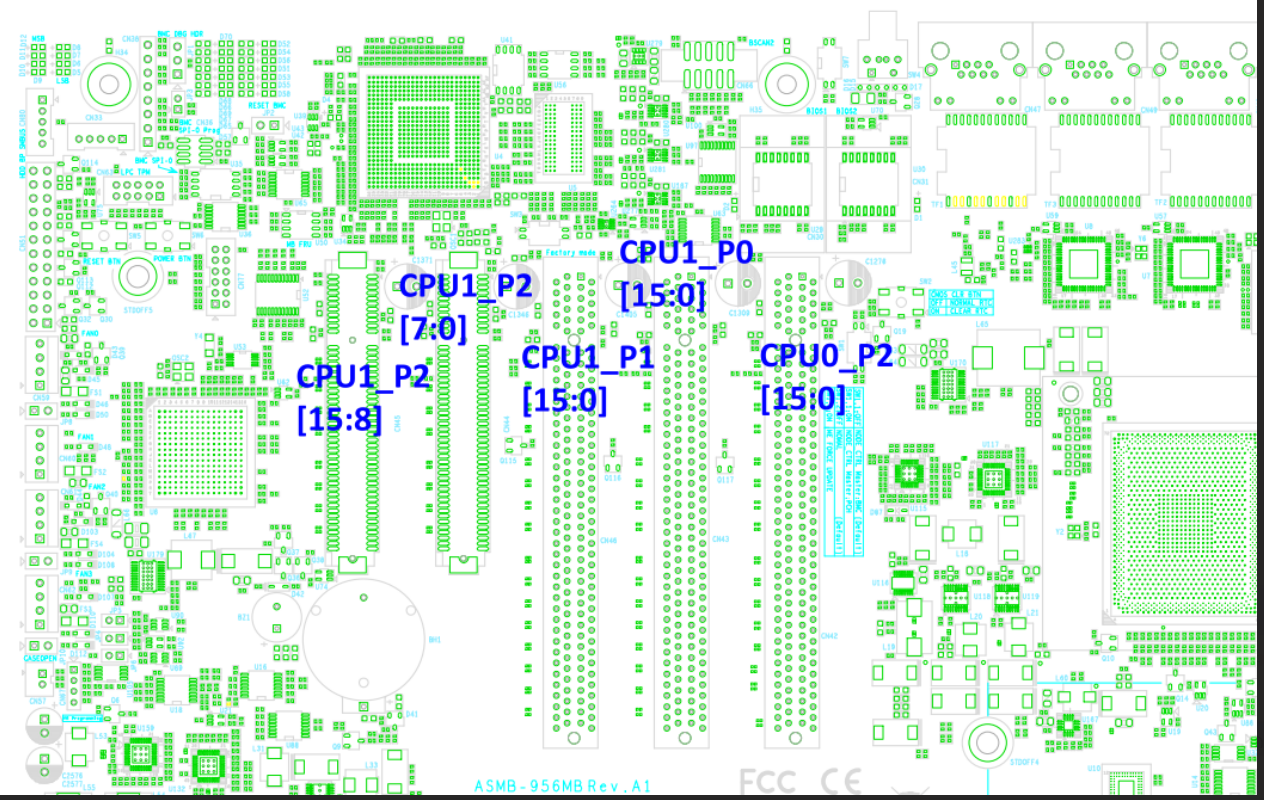

CPU0_P2 --> BIOS Socket0 IOU3
CPU1_P0 --> BIOS Socket1 IOU0
CPU1_P1 --> BIOS Socket1 IOU1
CPU1_P2[7-0] --> BIOS Socket1 IOU3 [2A,2B]
CPU1_P2[8-15] --> BIOS Socket1 IOU3[2C,2D]
- BIOS --> Hardware --> Northbridge --> PCI E Express Ports Configuration
IOU0 -> PCIe0A -0 , IOU1 -> PCIe1A -1D, IOU3 -> PCIe2A -2D, IOU4 -> PCIe3A -3D

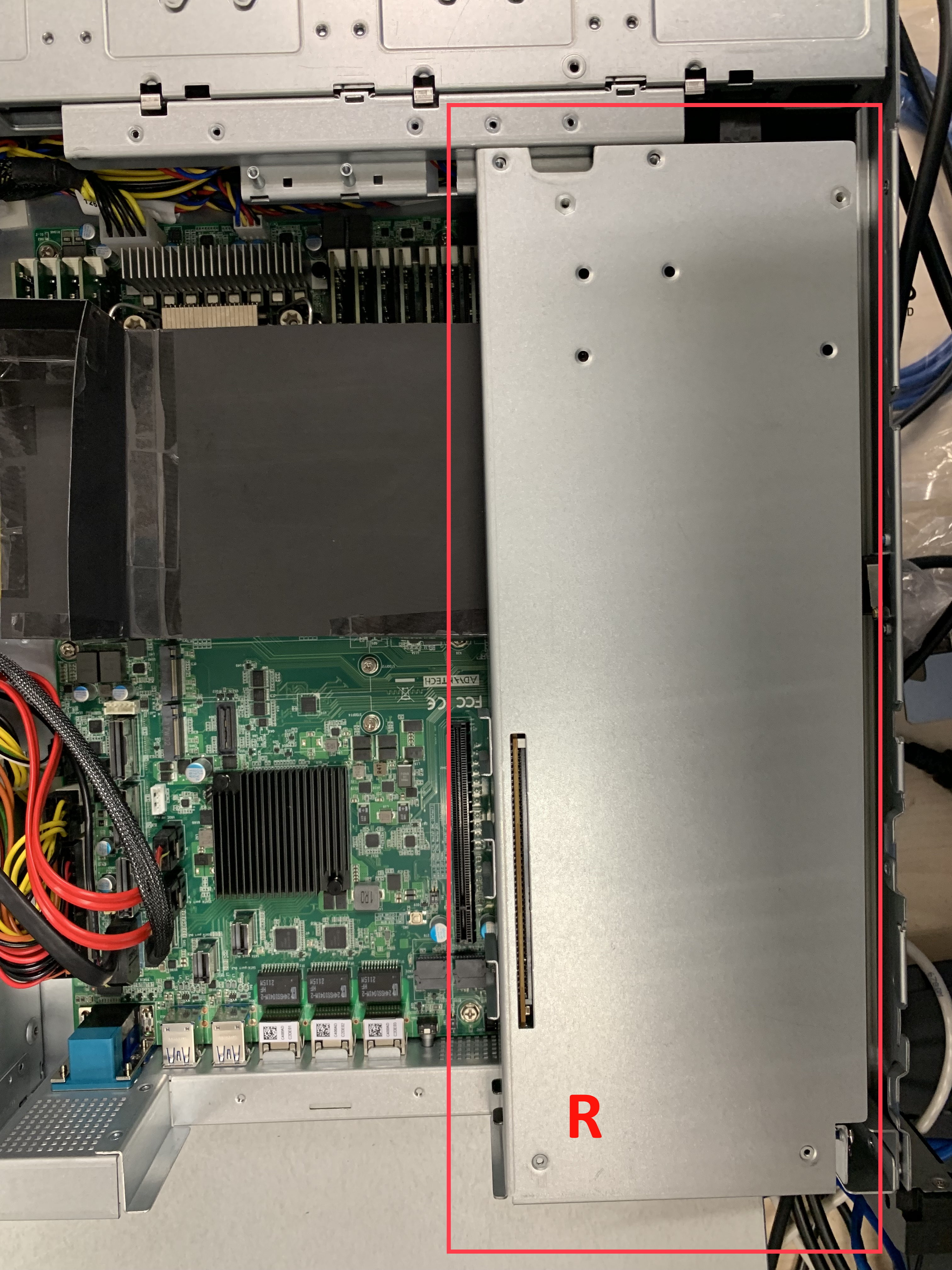

- Riser Cage on Right map to PCIe x16 slot identification (from TOP view)
- PCIe lane from CPU1
- Riser Cage on Left map to PCIe slot x16 identification (from TOP view)
- PCIe lane from CPU0
