NMC PCIe bus (slot) mappings on FWA-6520 Series

Purpose

For appliance products which support multi NMC slots, users do want to understand how to identify the NMC devices from PCIe info.This article will introduce the mappings on physical NMC slots v.s. CPU(s) info.

Prerequisites

1. Advantech ICVG FWA-6520-series
2. Advantech ICVG NMC cards

Target Audience

All users who are using Advantech NMC modules on appliance FWA-6520 Series.

NMC PCIe BUS ID sequence

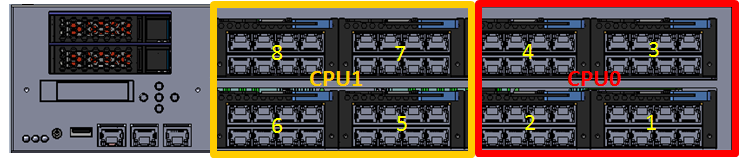

• Check Numbers on NMC (Marked in Yellow)

Model 1  : FWA-6520-01E

Model 2 :  FWA-6520-03E
