FWA-2112 on-board SFP/SFP+ ports (X553) performance

Purpose:

To show the LAN performance of on-board SFP ports (X553).

Scope:

FWA-2112

Target Audience:

Advantechers technician

FWA-2112 users

Contents:

FWA-2112 has 4C/8C/16C SKUs with different CPU of C3558/C3758/C3958.

C3558 supports 2 *1G SFP and 2*10G SFP+ ports from integrated X553 controller; while C3758 and C3958 supports 4 *10G SFP+ ports from integrated X553 controller.

But because the limitation of CPU (20GBs full duplex bandwidth total across all X553 ports), the throughput can't reach 100% if 4 SFP+ ports are running simultaneously on C3758/C3958 SKUs.

Here are the test results for C3758 and C3958.

C3758:

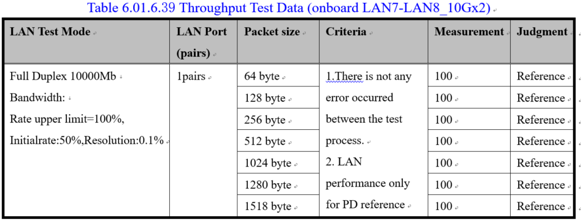

LAN7+LAN8:

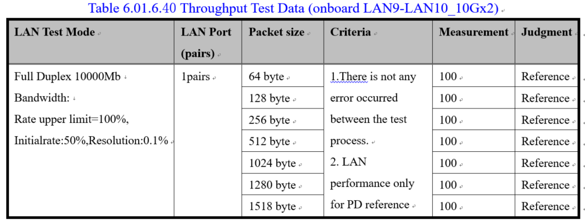

LAN9+LAN10:

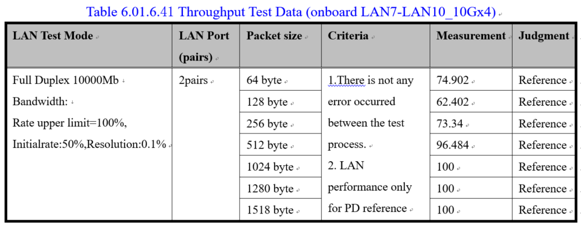

LAN7+LAN8+LAN9+LAN10:

C3958:

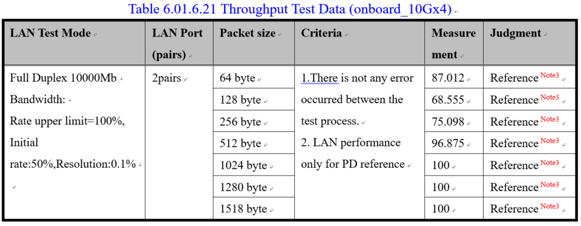

LAN7+LAN8+LAN9+LAN10:
